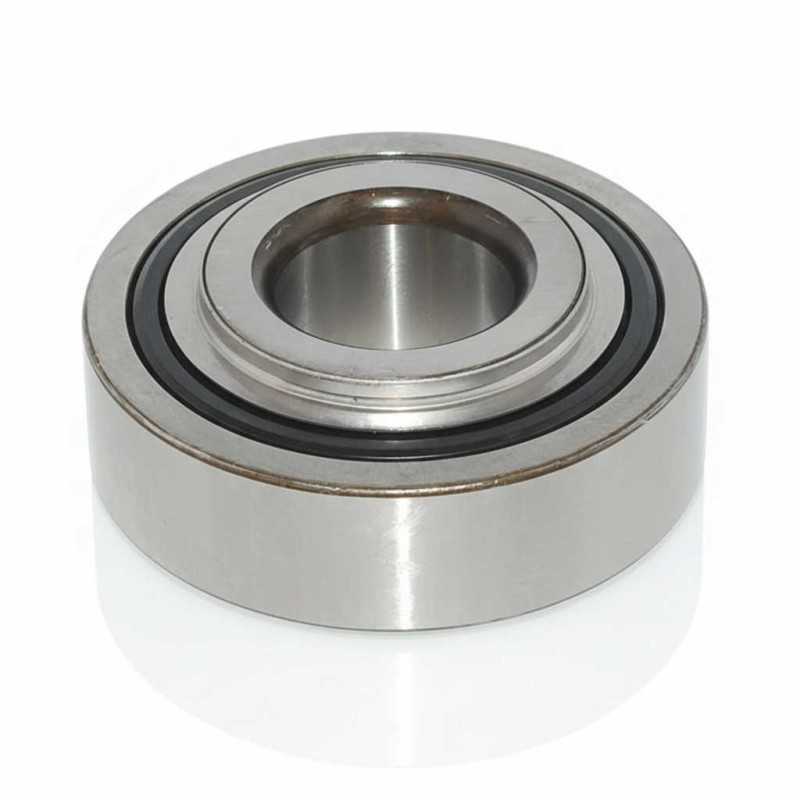

35BCV09 CS38 RICH Single Row Deep Groove Ball Bearing – 35 × 92 × 32/36 mm
OE Reference: 9004A-36043 DAIHATSU
The 35BCV09 CS38 RICH is a single row deep groove ball bearing. Its dimensional and structural parameters correspond to the 35 × 92 × 32/36 mm format, incorporating an asymmetric ring configuration where the inner ring functions as a spacer for automotive drivetrain interfaces.
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: 35BCV09 CS38 RICH
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 92 mm
- Inner Ring Width (B): 36 mm
- Outer Ring Width (C): 32 mm
- Sealing: Open (None)
- Weight: 0.89 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial and axial load arrangement
- Structural Layout: Asymmetric rings with an extended inner ring for axial positioning
- Internal Configuration: Deep groove geometry for high-speed rotational stability
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Daihatsu transmission and gearbox assembly interfaces
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
