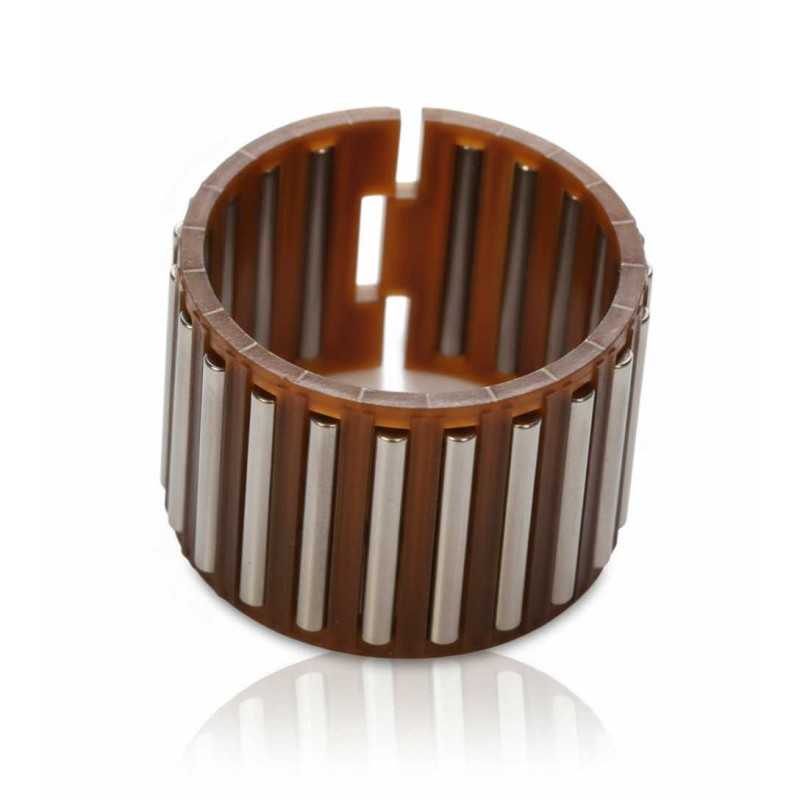

F-207024 RICH Needle Roller and Cage Assembly – 27 × 32 × 25 mm
OE Reference: 85311115 Audi / VW
The F‑207024 RICH is a needle roller and cage assembly with a 27 × 32 × 25 mm dimensional format. It incorporates a polyamide cage structure and is intended for arrangements where the shaft and housing bore act as the raceways.
Technical Specifications:
- Brand: RICH
- Type: Needle roller and cage assembly
- Model: F‑207024 RICH
- Inner Diameter (Fw): 27 mm
- Outer Diameter (Ew): 32 mm
- Width (U): 25 mm
- Cage Material: Polyamide
- Roller Material: High‑carbon chrome bearing steel
- Weight: 0.021 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial load arrangement within compact radial space.
- Structural Layout: Cage‑guided needle rollers without inner or outer rings.
- Cage Guidance: Polyamide cage guiding the needle roller arrangement.
- Material Type: Bearing‑grade steel rollers with polyamide cage structure.
- Application Interface: Dimensional interface corresponding to OE reference 85311115.
Transparency Note: This bearing is manufactured under the RICH brand. OE or interchangeable references are provided solely for identification and do not imply affiliation with or endorsement by other manufacturers.
