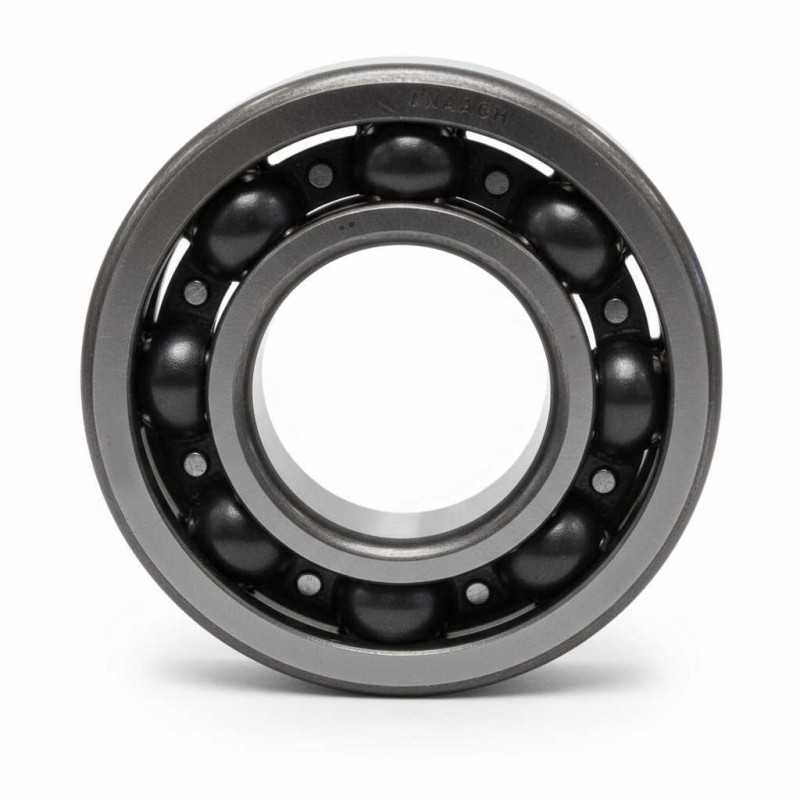

830046-3 RICH Single Row Deep Groove Ball Bearing – 30 × 64 × 16 mm
OE References:
- YAMAHA 93306-20648
- YAMAHA 93306-20593
Technical Specifications:
- Type: Single row deep groove ball bearing
- Brand: RICH
- Model Designation: 830046-3 RICH
- Inner Diameter (d): 30 mm
- Outer Diameter (D): 64 mm
- Width (B): 16 mm
- Outer Ring Width (C): 13.1 mm
- Inner Ring Shoulder Diameter (d1): 61.2 mm
- Weight: 0.214 kg
- Cage: Steel
- Sealing: None (Open bearing)
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Single row radial ball bearing with specific outer ring geometry.
- Internal Geometry: Deep groove raceways suitable for combined radial and axial load distribution.
- Material Composition: High-carbon chromium steel rings and rolling elements.
- Lubrication: Open configuration without integrated sealing elements.
- Dimensional Format: 30 × 64 × 16 mm configuration with 13.1 mm outer ring width.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
