DG2568 N C3 RICH 25x68x19 DG2568HNSH2C3 RICH
zoom_out_map
DG2568 N C3 RICH 25x68x19 DG2568HNSH2C3 RICH

DG2568 N C3 RICH 25x68x19

Type: Single Row Deep Groove Ball Bearing (Grooved Outer Ring)
Model: DG2568 N C3 RICH
OE Reference: 90363-25064 TOYOTA
Dimensions: 25 x 68 x 17 mm
Brand: RICH
Origin: China
RICH
DG2568HNSH2C3
€6.99
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

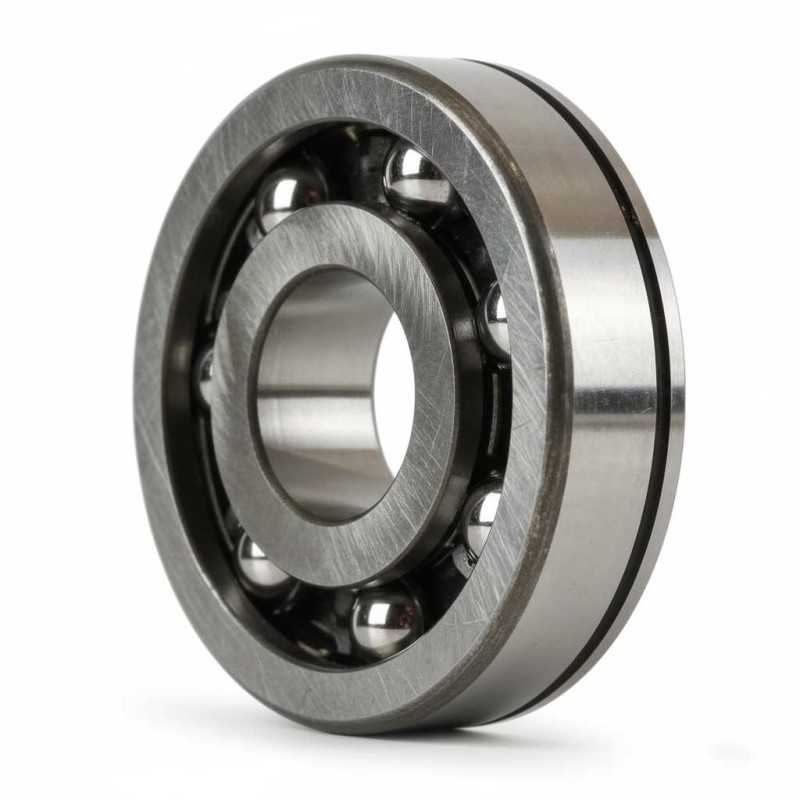

DG2568 N C3 RICH – Single Row Deep Groove Ball Bearing – 25 x 68 x 17 mm

OE Reference:

  • TOYOTA: 90363-25064

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: DG2568 N C3
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 68 mm
  • Width (B): 17 mm
  • Internal Clearance: C3 (Greater than normal)
  • Cage Material: Polyamide
  • Outer Ring Feature: Snap ring groove (N)
  • Sealing: None (Open)
  • Weight: 0.292 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision-engineered single-row deep groove ball bearing featuring an external snap ring groove on the outer ring for axial location within the housing.
  • Cage Design: Equipped with a high-performance polyamide cage that offers superior elasticity, reduced weight, and optimized ball guidance for high-speed transmission environments.
  • Thermal Stability: Manufactured with C3 internal clearance to accommodate thermal expansion and ensure operational integrity under elevated temperature conditions.
  • Mechanical Interface: 25 x 68 x 17 mm dimensional format produced to rigorous industrial standards for direct compatibility with Toyota original equipment gearboxes and drivetrain assemblies.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
68
Width
19
Weight
0,309
Ball Rows
Single Row
Cage
Polyamide Cage
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
