TMB204RS/22 RICH 22x47x14

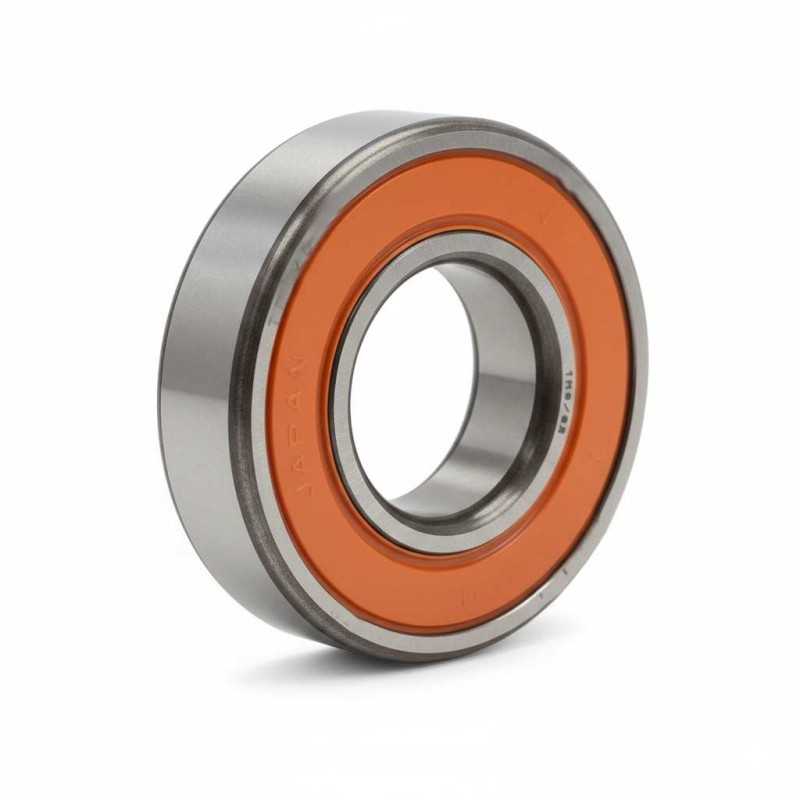

TMB204 RS/22 RICH – Single Row Deep Groove Ball Bearing – 22 x 47 x 14 mm

OE References:

• 91004-KRN-671 HONDA

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: TMB204RS/22
• Inner Diameter (d): 22 mm
• Outer Diameter (D): 47 mm
• Width (B): 14 mm
• Cage Material: Steel
• Sealing: One-sided plastic contact seal (RS)
• Weight: 0.13 kg
• Country of Origin: China

Product Details:

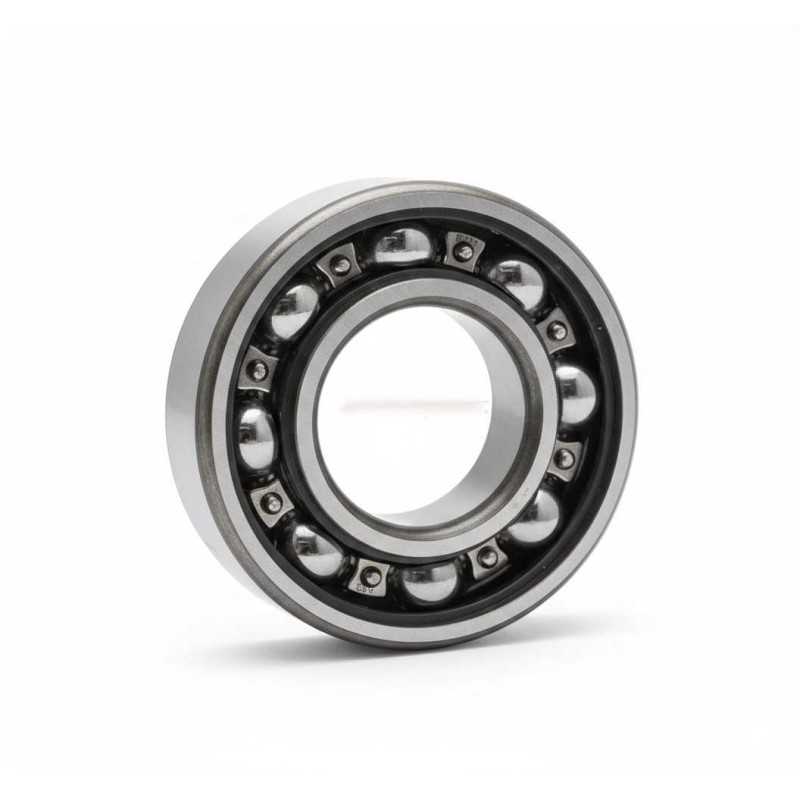

• Components: Single row radial deep groove ball configuration engineered with a pressed steel cage and a single-sided plastic contact seal.
• Sealing Configuration: One side sealed with a rubber/plastic contact shield, opposite side remaining open.
• Dimensions: 22 mm inner diameter, 47 mm outer diameter, and 14 mm width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
