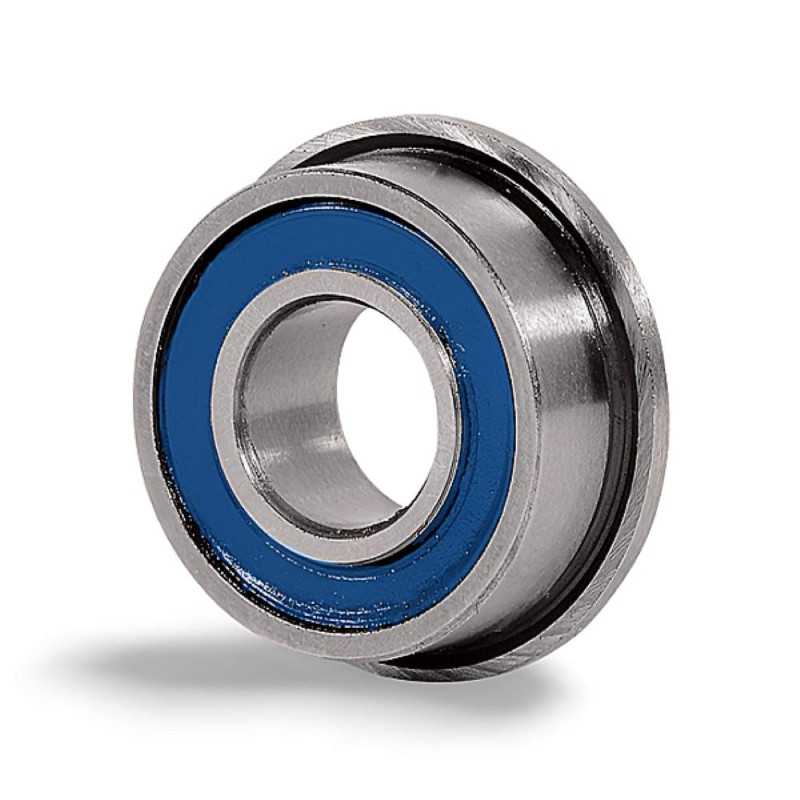

SSF 686-2RS RICH Stainless Steel Flanged Miniature Deep Groove Ball Bearing - 6 x 13 x 5 mm

The SF 686-2RS RICH is a stainless steel flanged miniature single row deep groove ball bearing designed for compact applications requiring corrosion resistance and reliable operation. Key dimensions are 6 mm inner diameter, 13 mm outer diameter, and 5 mm width, with a flange diameter (D1) of 15 mm. This bearing has a normal radial clearance (CN), weighs 0.003 kg, and features a steel cage guided by the rolling elements. It is made in China.

Key Specifications:

  • Type: Stainless Steel Flanged Miniature Deep Groove Ball Bearing
  • Dimensions: 6 mm inner diameter x 13 mm outer diameter x 5 mm width
  • Flange Diameter (D1): 15 mm
  • Weight:** 0.003 kg
  • Cage:** Steel, guided by the rolling elements
  • Clearance:** CN (normal clearance)
  • Seals:** Double-sided rubber, contact (2RS)
  • Product Feature:** Miniature, Flanged, Stainless Steel
  • Country of Origin:** China

Key Advantages:

  • Stainless steel construction for excellent corrosion resistance.
  • Flanged design for easy mounting and axial positioning.
  • Miniature size ideal for compact applications.
  • Effective rubber seals (2RS) for protection against dust and moisture.
  • Steel cage guided by rolling elements for smooth and reliable operation.

Data sheet

Inner Diameter
6
Outer Diameter
13
Width
5
Weight
0,003
Sealing
Lip Seal On Both Sides
Clearance
CN (Normal)
