22312 EKW33J C3 RICH 60x130x46 22312EKW33J-C3 RICH
search
  • 22312 EKW33J C3 RICH 60x130x46 22312EKW33J-C3 RICH

22312 EKW33J C3 RICH 60x130x46

RICH
22312EKW33J-C3
€16.00
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

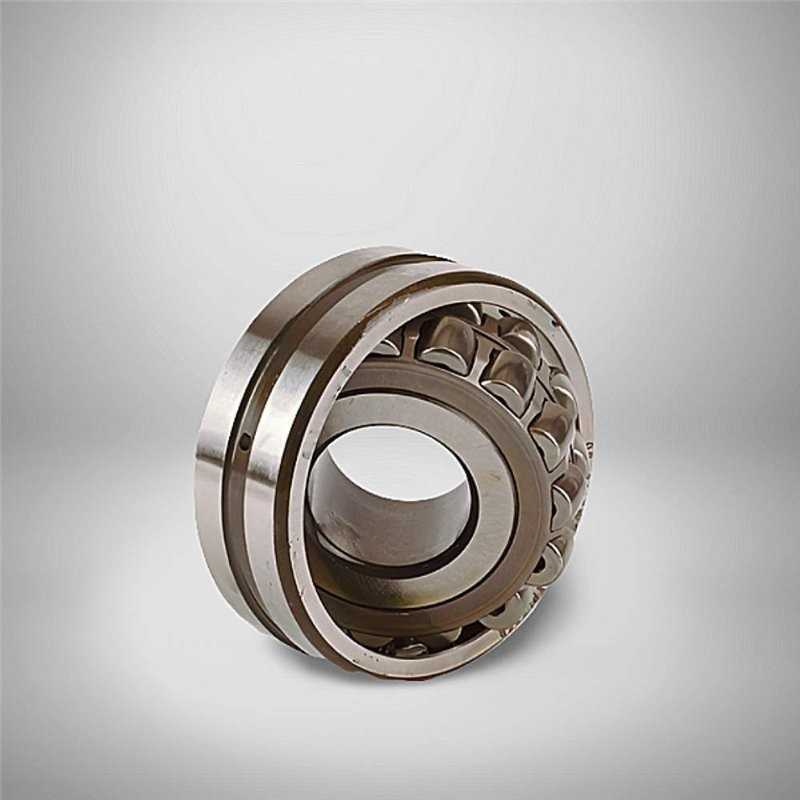

22312 EKW33J C3 RICH Spherical Roller Bearing - 60 x 130 x 46 mm

Technical Specifications:

  • Brand: RICH
  • Type: Spherical Roller Bearing
  • Dimensions: 60 x 130 x 46 mm
  • Taper: Taper 1:12
  • Cage: Steel
  • Clearance: C3 (Greater than normal)
  • Reinforced Execution: Yes
  • Weight: 2.934 kg
  • Country of Origin: China

The 22312EKW33J C3 RICH is a robust and high-performance spherical roller bearing designed to operate reliably under extremely heavy radial and axial loads in a wide range of industrial applications. Its standout feature is the C3 internal clearance, which is greater than normal, allowing the bearing to accommodate thermal expansion during high-speed rotation or operation in high-temperature environments. This bearing is also engineered to accommodate misalignment due to its unique design, which features two rows of rollers with a common spherical outer ring raceway. The reinforced E execution provides a significantly higher load capacity, making it a powerful solution for the most demanding applications. The tapered bore (K suffix) with a 1:12 taper simplifies mounting onto a tapered shaft or with an adapter sleeve, while the W33 designation indicates a lubrication groove and holes on the outer ring for effective relubrication. The steel cage ensures durability and stability. The 22312EKW33J C3 RICH is the ideal choice for heavy-duty machinery where high load, shock, and misalignment are common challenges.

Key Performance Advantages:

  • C3 Clearance: Ideal for high-speed and high-temperature operation as it accommodates thermal expansion.
  • Extreme Load Capacity: Engineered to handle very heavy radial and axial loads.
  • Self-Aligning: Automatically compensates for shaft or housing misalignment.
  • Optimized Mounting: The tapered bore simplifies installation with adapter sleeves.
  • Enhanced Lubrication: The W33 feature facilitates relubrication for an extended service life.
  • RICH Quality: Engineered for precision and consistent performance under tough conditions.

Data sheet

Inner Diameter
60
Outer Diameter
130
Width
46
Weight
2,934
Roller Rows
Double Row
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
