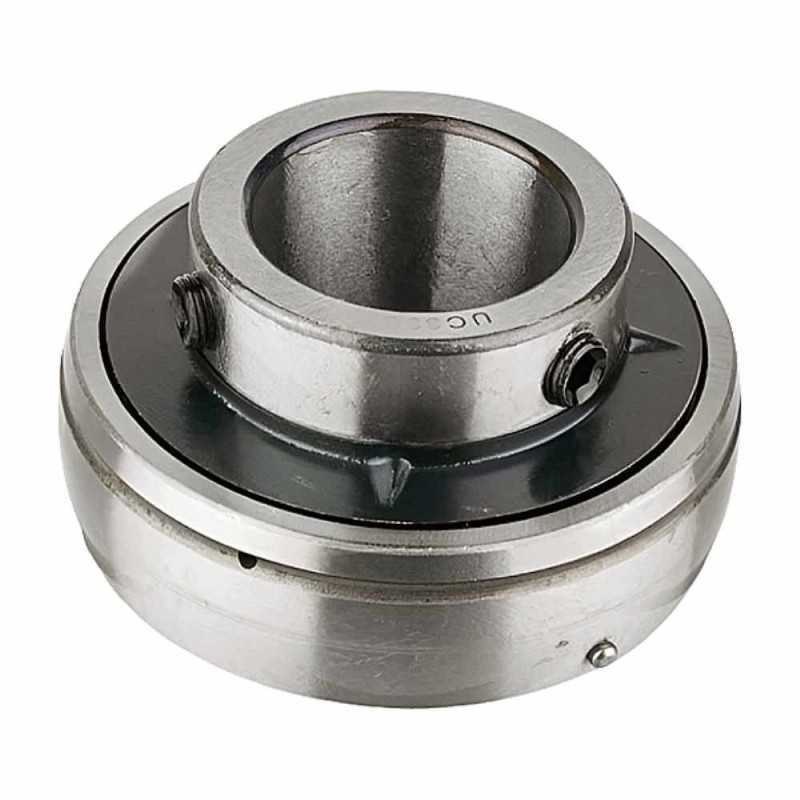

UC208-24 RICH Insert Ball Bearing - 38.1 x 80 x 49.2 mm

Technical Specifications:

  • Brand: RICH
  • Type: Insert Ball Bearing
  • Dimensions: 38.1 x 80 x 49.2 mm
  • Inner Diameter (d): 38.1 mm
  • Outer Diameter (D): 80 mm
  • Inner Ring Width: 49.2 mm
  • Outer Ring Width (C): 21 mm
  • Weight: 0.642 kg
  • Outer Ring Profile: (Rounded)
  • Groove on Outer Ring: Yes
  • Sealing: Double-sided lip seal covered with a plate
  • Country of Origin: China

The UC208-24 RICH is a robust and versatile insert ball bearing designed for use in a variety of housings to support rotating shafts. Its rounded outer ring allows for a degree of misalignment to compensate for installation or operational inaccuracies. The bearing is equipped with a groove on its outer ring, which is used to secure it axially within a housing with a snap ring. The double-sided lip seals covered with a plate provide superior protection against contaminants, ensuring long-lasting performance and reliability even in challenging environments. This bearing is an excellent solution for various industrial and agricultural applications.

Key Performance Advantages:

  • Misalignment Tolerance: The spherical outer ring helps accommodate initial misalignments during installation.
  • Effective Sealing: Robust double-sided seals protect the bearing from dirt, dust, and moisture.
  • Axial Location: The outer ring groove provides a secure method for axial positioning.
  • Durability: Designed for reliability in demanding industrial and agricultural applications.

Data sheet

Inner Diameter
38,1
Outer Diameter
80
Width
49,2
Weight
0,642
Sealing
Lip Seal On Both Sides
