UC205 RHT 270°C RICH 25x52x34,1
The UC205 RHT 270°C RICH insert ball bearing (25 x 52 x 34.1 mm) is rated for high temperatures (+270°C), featuring C3 clearance, a steel cage, and double non-contact shields.

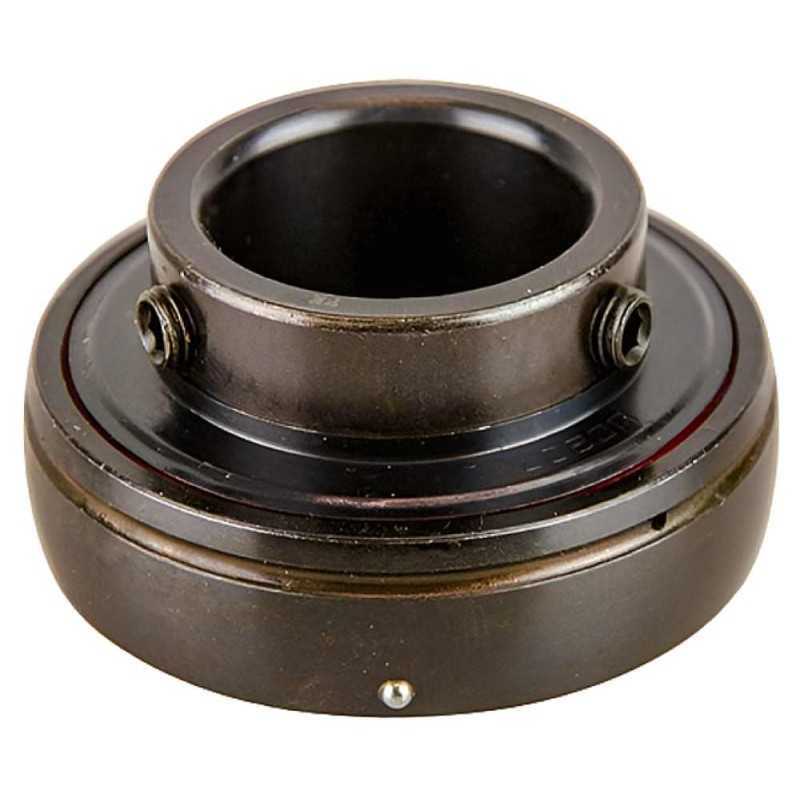

UC205 RHT 270°C RICH Insert Ball Bearing - 25 x 52 x 34.1 mm
Technical Specifications:
- Product Type: Insert Ball Bearing
- Model Designation: UC205 RHT 270°C
- Brand: RICH
- Bore Diameter (d): 25 mm
- Outer Diameter (D): 52 mm
- Inner Ring Width: 34.1 mm
- Outer Ring Width (C): 17 mm
- Clearance: C3 - Greater than Normal
- Sealing: Double-sided non-contact shields
- Cage Material: Steel
- Maximum Operating Temperature: +270°C
- Outer Ring: Rounded (Self-aligning)
- Weight: 0.197 kg
- Country of Origin: China
The UC205 RHT 270°C RICH is a specialized insert ball bearing from the Robust High Temperature (RHT) series, engineered for extreme thermal conditions. Designed for reliable, continuous operation at temperatures up to +270°C, this bearing features a durable steel cage and generous C3 (greater than normal) clearance to effectively manage thermal expansion. It is protected by double-sided non-contact shields and incorporates a rounded outer ring, enabling essential self-aligning capabilities when mounted into a housing unit. With primary dimensions of 25 mm bore, 52 mm outer diameter, and 34.1 mm inner ring width, the UC205 RHT 270°C RICH provides superior durability and performance in demanding environments like industrial furnaces, drying kilns, and high-heat processing equipment.
Key Performance Advantages:
- Robust High Temperature (RHT): Specifically designed for exceptional performance up to +270°C.
- C3 Internal Clearance: Optimally manages high thermal loads and ensures stable running.
- Rounded Outer Ring: Facilitates self-aligning capability to accommodate misalignment.
- Steel Cage and Shields: Provides mechanical strength and contamination protection.
- RICH Quality: A reliable high-performance bearing for challenging thermal applications.
Data sheet
Inner Diameter
25
Outer Diameter
52
Width
34,1
Weight
0,197
