GE 70 ET 2RS 70x105x49
Rating:
(0)
EUR €
- EUR €
- USD $

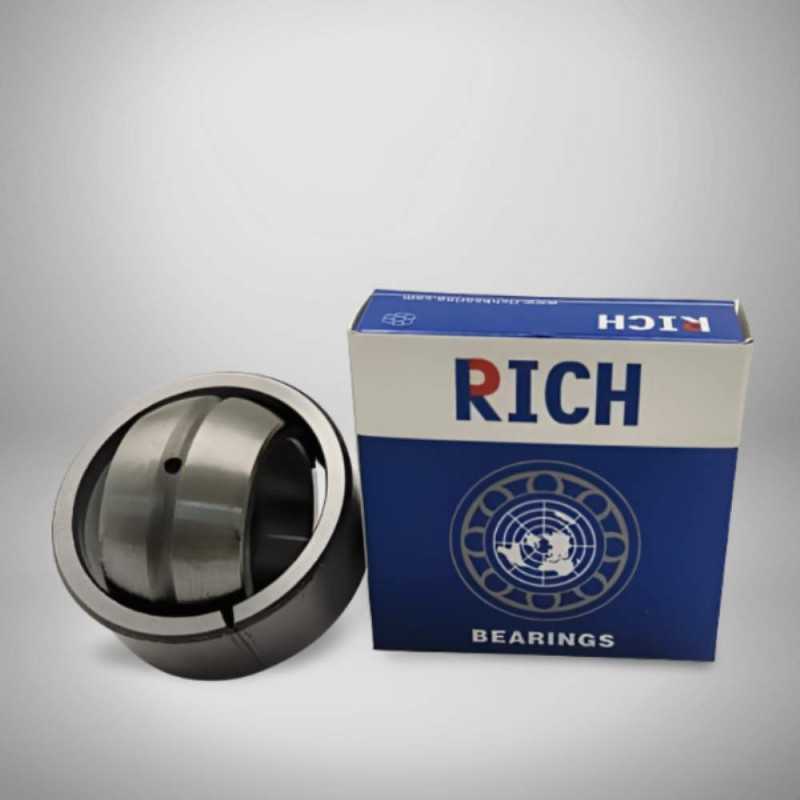

GE 70 ET 2RS RICH Spherical Plain Bearing - 70 x 105 x 49 mm
Technical Specifications:
- Product Type: Spherical Plain Bearing
- Model Designation: GE 70 ET 2RS
- Brand: RICH
- Bore Diameter (d): 70 mm
- Outer Diameter (D): 105 mm
- Width (B): 49 mm
- Outer Ring Width (C): 40 mm
- Friction Pair: Chrome Steel/PTFE
- Sealing: Double-sided Rubber, Contact (2RS)
- Weight: 1.525 kg
- Country of Origin: China
The GE 70 ET 2RS RICH is a heavy-duty spherical plain bearing engineered to accommodate substantial angular misalignment between the shaft and housing while supporting high static and dynamic radial loads. This bearing features a self-lubricating Chrome Steel/PTFE friction pair, ensuring it is maintenance-free and requires no periodic re-lubrication. The designation 2RS signifies that the bearing is equipped with double-sided rubber contact seals, providing excellent protection against the ingress of dust, dirt, and moisture, which is critical for maintaining performance in contaminated operating environments. With dimensions of 70 mm bore, 105 mm outer diameter, and 49 mm width, the GE 70 ET 2RS RICH is commonly used in applications such as heavy construction machinery, hydraulic cylinders, and large linkage systems.
Key Performance Advantages:
- Maintenance-Free Operation: PTFE composite liner provides self-lubrication, eliminating the need for periodic re-lubrication.
- Fully Sealed (2RS): Double-sided contact rubber seals prevent contamination and maximize service life.
- High Misalignment Capacity: Spherical design efficiently handles angular movement and compensates for shaft deflection.
- RICH Quality: A durable, high-capacity component engineered for stability and long service life.
Data sheet
Inner Diameter
70
Outer Diameter
105
Width
49
Weight
1,525
