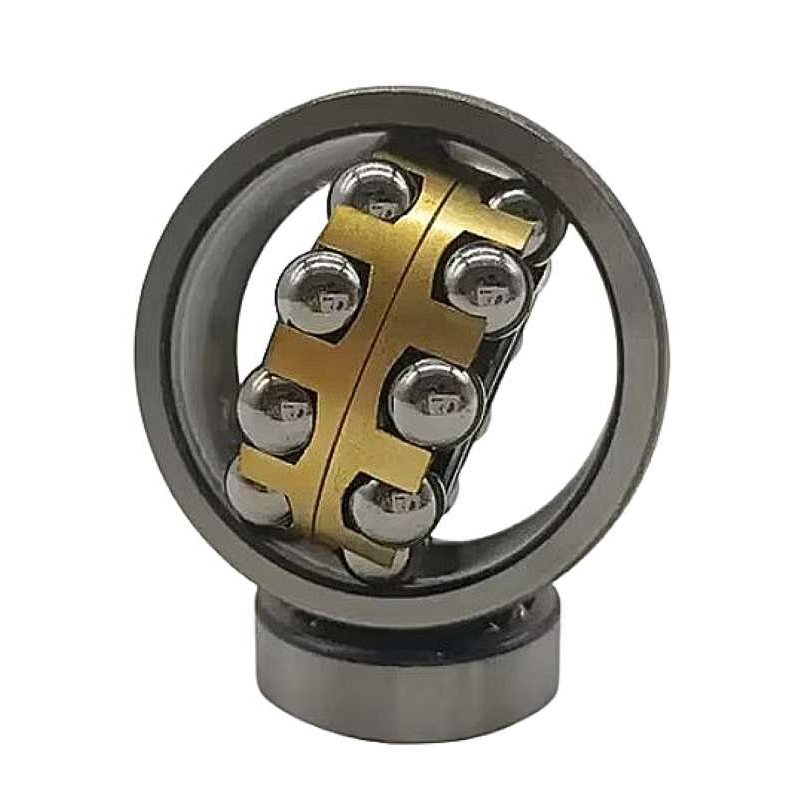

2314 M C3 RICH 70x150x51 2314MC3 RICH
zoom_out_map
2314 M C3 RICH 70x150x51 2314MC3 RICH

2314 M C3 RICH 70x150x51

Type: Self-Aligning Ball Bearing
Model: 2314 M C3 RICH
Dimensions: 70 x 150 x 51 mm
Cage: Machined Brass (M)
Clearance: C3
Brand: RICH
Origin: China
RICH
2314MC3
€37.16
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

2314 M C3 RICH Heavy-Duty Self-Aligning Ball Bearing - 70 x 150 x 51 mm

Technical Specifications:

  • Catalog Code: 2314 M C3 RICH
  • Brand: RICH
  • Type: Self-aligning ball bearing (Double row)
  • Bore Diameter (d): 70 mm
  • Outer Diameter (D): 150 mm
  • Width (B): 51 mm
  • Cage Material: M (Machined Brass, rolling element guided)
  • Internal Clearance: C3 (Greater than Normal)
  • Sealing: Open (None)
  • Weight: 4.226 kg
  • Country of Origin: China

Key Performance Advantages:

  • High-Strength Machined Brass Cage (M): The solid brass cage provides superior durability and heat resistance compared to standard steel cages. It is ideal for applications with high accelerations, vibrations, or extreme centrifugal forces.
  • Exceptional Misalignment Tolerance: Featuring a common spherical raceway in the outer ring, this bearing automatically compensates for shaft deflections and mounting misalignments up to several degrees without increasing internal friction.
  • C3 Internal Clearance: Specifically designed with C3 clearance to allow for thermal expansion during high-speed or heavy-load operations, ensuring smooth rotation and preventing premature failure.
  • Superior Load Capacity: As a 2300 series wide-type bearing, it offers a high radial load rating and a robust 51 mm width, providing maximum stability for heavy industrial shafts.
  • Optimized for Harsh Environments: The combination of brass cage and C3 clearance makes it perfect for paper mills, mining equipment, and heavy-duty fans.

Transparency Note: This product is manufactured under the RICH brand. The code 2314 M C3 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
70
Outer Diameter
150
Width
51
Cage
Brass
Clearance
C3 (Greater than Normal)
Category
Self-Aligning Ball Bearing
