  • NUKR62 X RICH 24x62x28 NUKR62X RICH

NUKR62 X RICH 24x62x28

Achieve precise motion with the NUKR62.X RICH cylindrical stud type track roller.

RICH
NUKR62X
€19.00
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

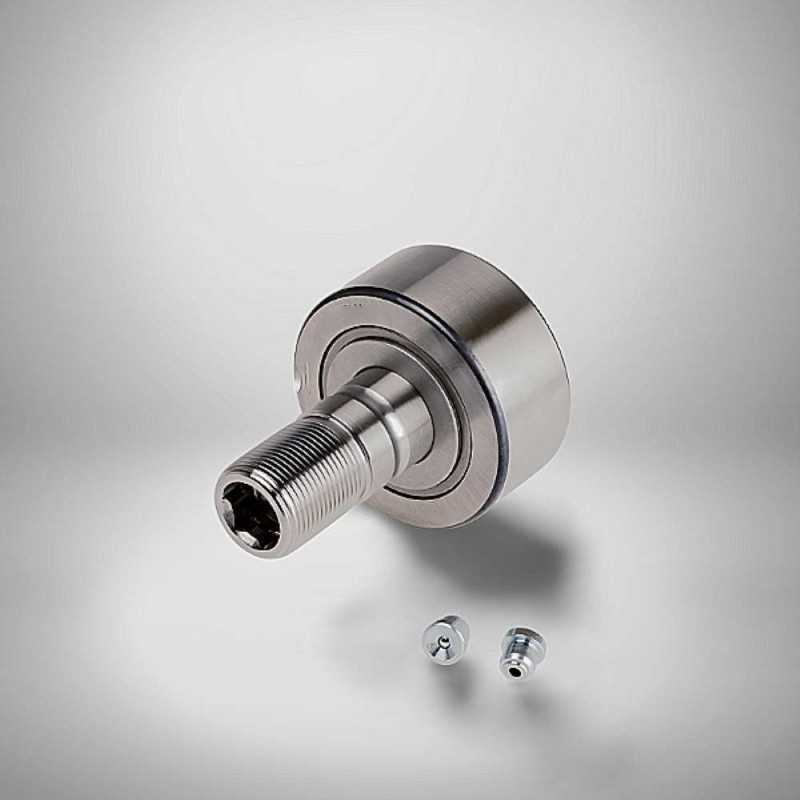

NUKR62.X RICH Stud Type Track Roller - 24 x 62 x 28 mm, Labyrinth Sealed

Technical Specifications:

  • Bearing Type: Stud Type Track Roller
  • Model Designation: NUKR62.X
  • Brand: RICH
  • Dimensions: 24 x 62 x 28 mm
  • Stud Diameter (d): 24 mm
  • Outer Diameter (D): 62 mm
  • Overall Width (B): 28 mm
  • Bearing Length (B1): 80 mm
  • Cage Type: None (Full Complement)
  • Rounded Outer Ring: No (Cylindrical)
  • Sealing: Double-sided labyrinths (for higher temperatures and less friction)
  • Thread: M24x1.5
  • Weight: 0.784 kg
  • Country of Manufacture: China

The NUKR62.X RICH stud type track roller, meticulously manufactured by RICH in China, is engineered for precise guidance and reliable performance in demanding linear motion systems. With precise dimensions of 24 mm stud diameter, 62 mm outer diameter, and a width of 28 mm, this track roller has an overall bearing length of 80 mm and features an M24x1.5 thread for secure mounting. It is designed with a cylindrical outer ring, making it suitable for direct running on flat raceway surfaces, and features a full complement roller set for maximum load capacity. Equipped with double-sided labyrinth seals, it offers excellent protection against contaminants while ensuring low friction and suitability for higher temperatures, significantly extending its service life. Weighing 0.784 kg, the NUKR62.X RICH stud type track roller provides consistent and long-lasting operation in critical machinery where robust guidance and durability are paramount.

Key Performance Advantages:

  • Stud Type Design: Integrated stud for easy and secure mounting.
  • Cylindrical Outer Ring: Optimized for direct running on flat raceway surfaces.
  • Full Complement Rollers: Maximizes load carrying capacity.
  • Labyrinth Seals: Provides effective contamination protection with minimal friction, suitable for high temperatures.
  • High Radial Load Capacity: Engineered for demanding linear guidance applications.
  • Precision Thread (M24x1.5): Ensures secure and stable installation.
  • RICH Quality: Manufactured in China to high standards, ensuring optimal performance.

Data sheet

Inner Diameter
24
Outer Diameter
62
Width
28
Weight
0,784
