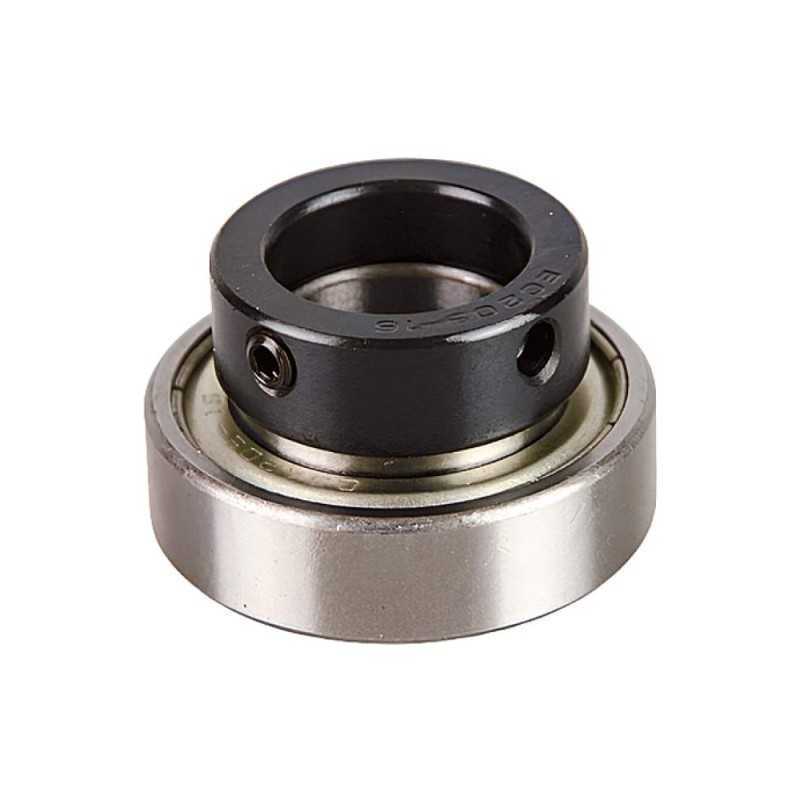

CSA204 RICH | Ball Bearing with Flat Outer Ring – 20 x 47 x 31 mm

Technical Specifications:

  • Catalog Code: CSA204 RICH
  • Brand: RICH
  • Bearing Type: Ball Bearing with Flat Outer Ring
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 47 mm
  • Total Width (T): 31 mm
  • Inner Ring Width: 21.5 mm
  • Outer Ring Width (C): 14 mm (insert bearing)
  • Outer Ring Profile: Cylindrical (not rounded)
  • Weight: 0.17 kg
  • Cage: Steel
  • Sealing: Double-sided rubber, contact type
  • Country of Origin: China

Key Performance Advantages:

  • Flat Outer Ring: Cylindrical profile for secure seating in housings.
  • Contact Rubber Seals: Double-sided sealing ensures protection against contaminants and reliable grease retention.
  • Steel Cage: Provides durability and stability under demanding operating conditions.
  • Optimized Dimensions: 20 mm bore, 47 mm outer diameter, 31 mm total width.
  • Insert Bearing Execution: Outer ring width 14 mm, designed for mounting in flat housings.
  • RICH Quality: Precision manufactured for reliability and consistent performance.

Transparency Note: This ball bearing with flat outer ring is manufactured directly under the RICH brand. The catalog code CSA204 is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand and origin.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
31
