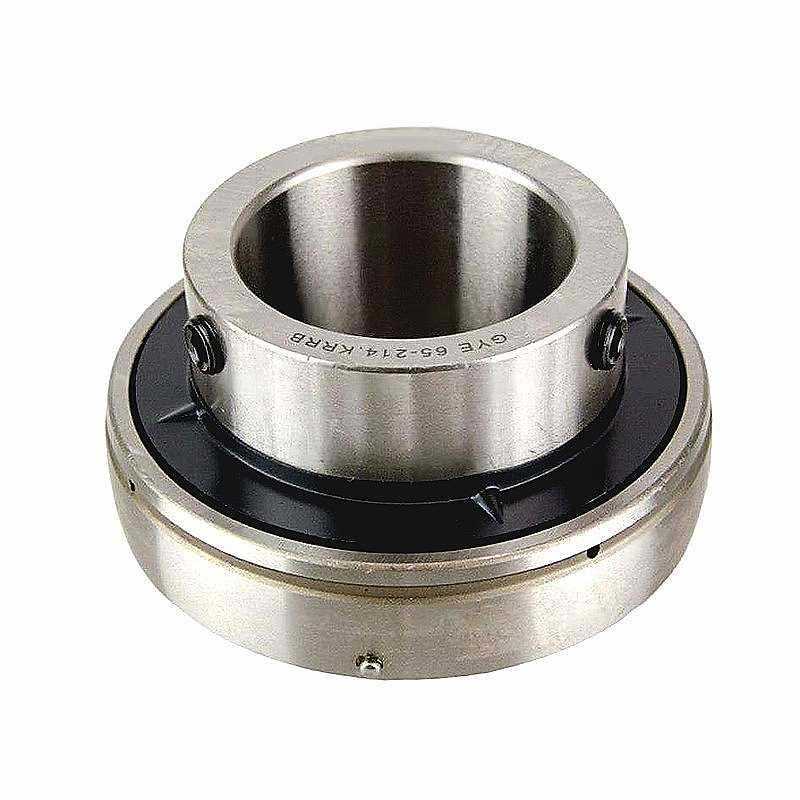

GYE65-214-KRR-B RICH Insert Ball Bearing - 65 x 125 x 74.6 mm
Technical Specifications:
- Catalog Code: GYE65-214-KRR-B RICH
- Brand: RICH
- Type: Insert ball bearing
- Inner Diameter (d): 65 mm
- Outer Diameter (D): 125 mm
- Inner Ring Width (B): 74.6 mm
- Outer Ring Width (C): 28 mm
- Internal Clearance: C3 (Greater than normal)
- Outer Ring Profile: Rounded / Spherical
- Sealing: Double-sided lip seal with metal plate cover
- Weight: 2.344 kg
- Country of Origin: China
Key Performance Advantages:
- C3 Internal Clearance: Designed with increased internal clearance to accommodate thermal expansion or high-speed operation without compromising performance.
- KRR Heavy-Duty Sealing: Features high-performance lip seals protected by robust metal plates, ensuring maximum defense against dirt and moisture.
- Self-Aligning Capability: The spherical outer ring design allows the bearing to tilt within its housing, compensating for shaft misalignments.
- Extended Inner Ring: Provides a wider seat on the shaft, enhancing stability and load distribution for heavy industrial or agricultural applications.
Transparency Note: This product is manufactured under the RICH brand. The code GYE65-214-KRR-B is used for identification purposes and does not imply affiliation with other manufacturers.
