  • UK322 RICH 110x240x80 UK322 RICH

UK322 RICH 110x240x80

Type: Insert Ball Bearing (Tapered Bore)
Model: UK322
Dimensions: 110 x 240 x 80 mm
Sealing: Reinforced Lip Seals
Origin: China
RICH
UK322
€76.68
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

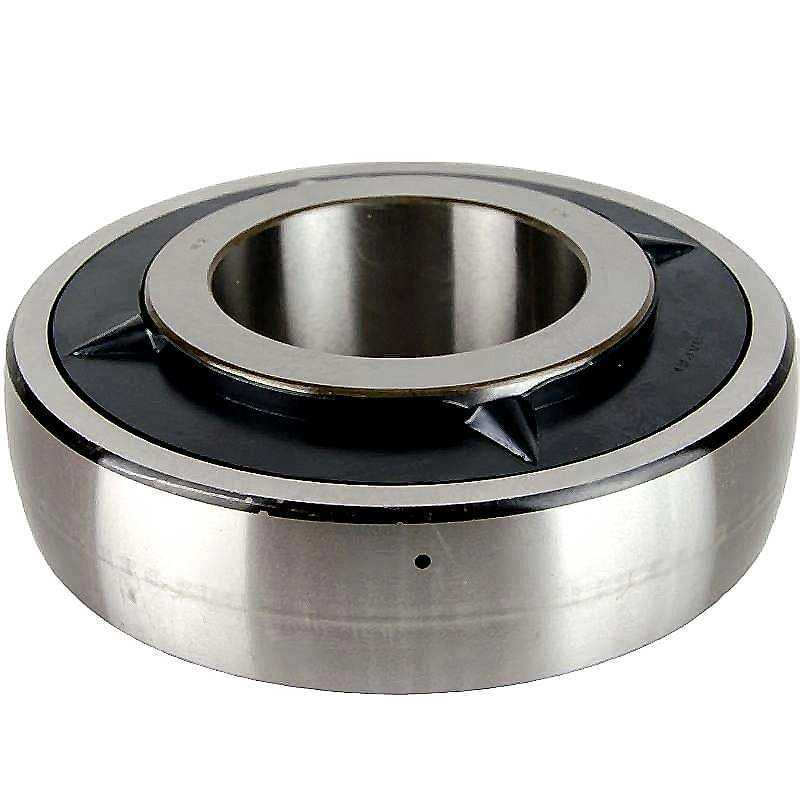

UK322 RICH Insert Ball Bearing with Conical Hole - 110 x 240 x 80 mm

Technical Specifications:

  • Catalog Code: UK322
  • Type: Insert ball bearing with conical hole
  • Bore Diameter (d): 110 mm
  • Outer Diameter (D): 240 mm
  • Inner Ring Width: 80 mm
  • Outer Ring Width (C): 60 mm
  • Taper: 1:12
  • Outer Ring Profile: Rounded (Yes)
  • Sealing: Double-sided lip seal covered with a plate
  • Weight: 11.92 kg
  • Country of Origin: China

Key Performance Advantages:

  • Conical Bore Precision: The 1:12 tapered bore is designed for mounting with adapter sleeves or on tapered shafts. This ensures a tight, concentric fit that minimizes vibration and prevents shaft wear, even under extreme rotational forces.
  • Self-Aligning Design: The rounded outer ring allows the bearing to automatically adjust for static misalignment during installation. This protects the internal components from uneven loading and extends the overall service life of the machinery.
  • Heavy-Duty 300 Series Construction: As a 322 model, this bearing offers a significantly higher load-carrying capacity compared to standard series. Its massive 11.92 kg build is optimized for heavy industrial machinery and high-torque applications.
  • Reinforced Protection: Featuring double-sided lip seals protected by external metal plates, this bearing is shielded against the ingress of coarse dust, moisture, and debris while ensuring optimal lubricant retention.
  • High Dimensional Stability: Engineered for large-scale operations, the wide inner and outer rings provide maximum stability and support for 110 mm shafts, reducing deflection during high-stress cycles.

Transparency Note: The code UK322 is used for identification purposes.

Data sheet

Inner Diameter
110
Outer Diameter
240
Width
80
