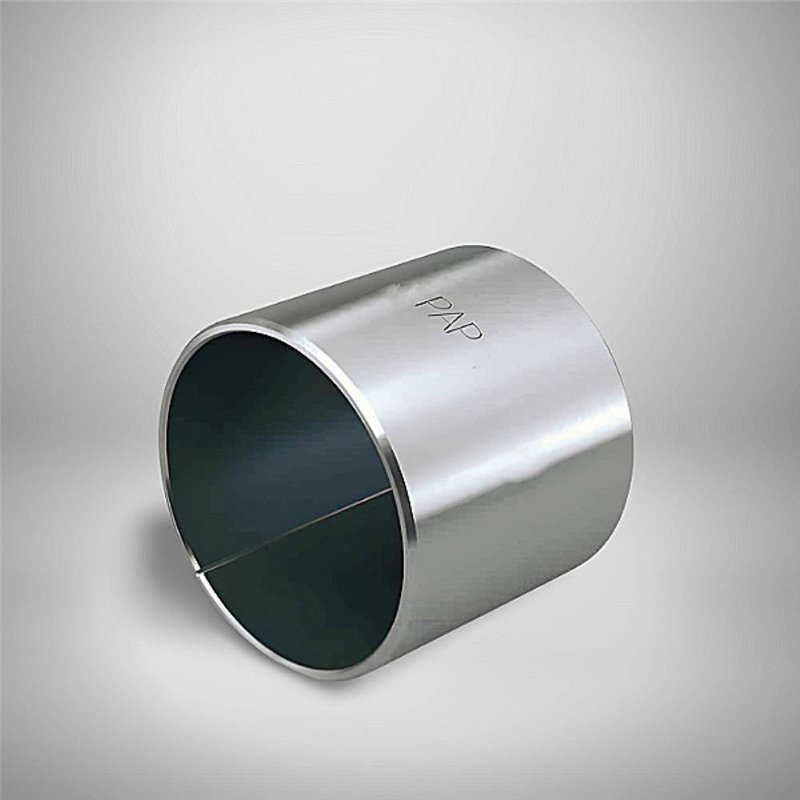

PAP 3030 P10 RICH 30x34x30 PAP3030P10 RICH
zoom_out_map
PAP 3030 P10 RICH 30x34x30 PAP3030P10 RICH

PAP 3030 P10 RICH 30x34x30

Type: Thin Wall Bush
Model: PAP 3030 P10 RICH
Bore: 30 mm
Material: PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAP3030P10
€0.70
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

PAP 3030 P10 RICH Thin Wall Bush - 30 x 34 x 30 mm

Technical Specifications:

  • Catalog Code: PAP 3030 P10 RICH
  • Brand: RICH
  • Type: Thin wall dry sliding bush
  • Dimensions: 30 x 34 x 30 mm
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 34 mm
  • Width (L): 30 mm
  • Material: PTFE on steel back (DU series)
  • Lubrication: Self-lubricating (Maintenance-free)
  • Weight: 0.045 kg
  • Country of Origin: China

Key Performance Advantages:

  • Permanent Self-Lubrication: The PTFE-based sliding layer provides a naturally low coefficient of friction, allowing for maintenance-free operation without the need for additional grease.
  • Enhanced Surface Contact: With a width of 30 mm, this bush offers a large contact area, effectively distributing radial loads and reducing localized wear on the shaft.
  • Reliable Composite Construction: Features a rigid steel backing for structural strength and a sintered bronze interlayer that ensures excellent heat dissipation and PTFE bonding.
  • Space-Saving Thin Wall: The 2 mm wall thickness allows for high-load performance within a compact radial envelope, perfect for streamlined machinery designs.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 3030 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
34
Width
30
Category
Thin wall bush
