SER206G RICH 30x62x38,1

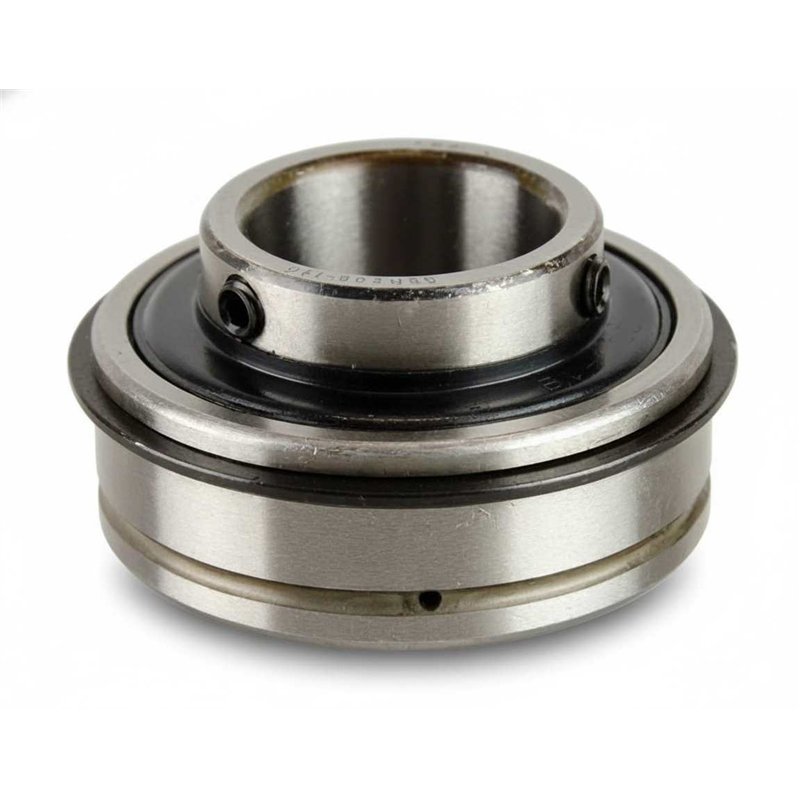

SER206G RICH – Ball Bearing with Cylindrical Outer Ring – 30 × 62 × 38.1 mm

Technical Specifications:

• Type: Ball bearing with cylindrical (flat) outer ring
• Brand: RICH
• Model Designation: SER206G
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 62 mm
• Inner Ring Width (B): 38.1 mm
• Outer Ring Width (C): 22.22 mm
• Internal Clearance: CN (Normal clearance)
• Sealing: Double-sided lip seal with protective plate
• Outer Ring Profile: Cylindrical (Non-spherical)
• Lubrication Feature: Groove with snap ring on outer ring (G)
• Weight: 0.36 kg
• Country of Origin: China

Construction Features:

• Outer Ring: Cylindrical flat profile featuring a snap ring and integrated lubrication groove.
• Inner Ring: Extended width (38.1 mm) for increased shaft contact surface.
• Sealing System: Integrated double-sided lip seals reinforced with metal cover plates.
• Dimensional Format: 30 × 62 × 38.1 mm configuration for cylindrical housing inserts.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
