29318 E RICH 90x155x39 29318E RICH
zoom_out_map
29318 E RICH 90x155x39 29318E RICH

29318 E RICH 90x155x39

Type: Spherical Roller Thrust Bearing
Model: 29318.E RICH
Dimensions: 90 x 155 x 39 mm
Execution: Reinforced (E)
Brand: RICH
Origin: China
RICH
29318E
€96.84
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

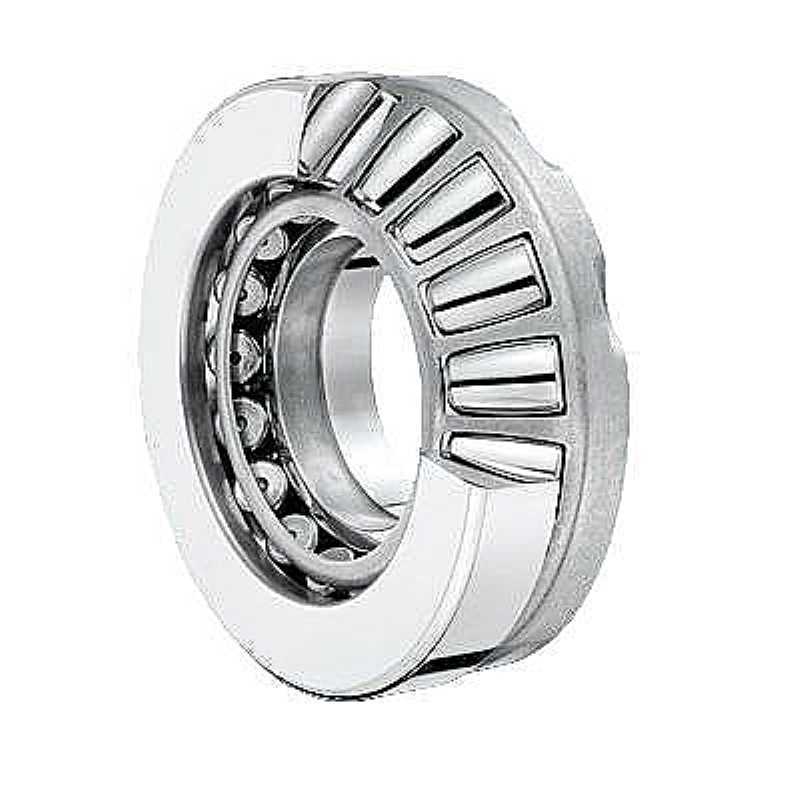

29318.E RICH Spherical Roller Thrust Bearing - 90 x 155 x 39 mm

Technical Specifications:

  • Catalog Code: 29318.E RICH
  • Brand: RICH
  • Type: Spherical roller thrust bearing
  • Bore Diameter (d): 90 mm
  • Outer Diameter (D): 155 mm
  • Total Height (T): 39 mm
  • Inner Ring Width (T3): 24.5 mm
  • Outer Ring Width (T1): 19.5 mm
  • Cage: High-strength Steel
  • Execution: E (Reinforced execution for increased load rating)
  • Weight: 2.748 kg
  • Country of Origin: China

Product Overview:

The 29318.E RICH is a high-precision spherical roller thrust bearing engineered to bridge the gap between compact dimensions and high load-carrying capacity. With a 90 mm bore and 155 mm outer diameter, this bearing is part of the 293 series, which offers a lower profile compared to the 294 series while maintaining exceptional axial strength. The "E" reinforced execution indicates an optimized internal layout with larger rolling elements, providing a higher dynamic load rating and extended service life under heavy stress. Its spherical raceway design makes the bearing inherently self-aligning, allowing it to easily accommodate angular misalignments or shaft deflections common in large-scale machinery. Featuring a robust steel cage for reliable roller guidance, the 29318.E is an ideal solution for vertical shafts, medium-heavy gearboxes, extruders, and industrial pumps where space efficiency and axial durability are required.

Key Performance Advantages:

  • Reinforced "E" Design: Enhanced internal geometry allows for higher load densities and superior fatigue resistance.
  • Self-Aligning Capability: Compensation for angular errors ensures smooth operation and prevents uneven load distribution.
  • Optimized for Axial Thrust: Specifically built to manage heavy axial forces in one direction with high rotational accuracy.
  • Durable Steel Cage: High-strength cage construction ensures consistent performance even in demanding mechanical environments.

Transparency Note: This bearing is manufactured under the RICH brand. The code 29318.E is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
90
Outer Diameter
155
Width
39
Cage
Steel
