GW211PPB3 RICH 38,887x100x33,3 GW211PPB3 RICH
zoom_out_map
GW211PPB3 RICH 38,887x100x33,3 GW211PPB3 RICH

GW211PPB3 RICH 38,887x100x33,3

Type: Insert Ball Bearing
Model: GW211PPB3 RICH
Bore: 38.887 mm Square
Sealing: Triple Lip Seal
Brand: RICH
Origin: China
RICH
GW211PPB3
€28.72
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

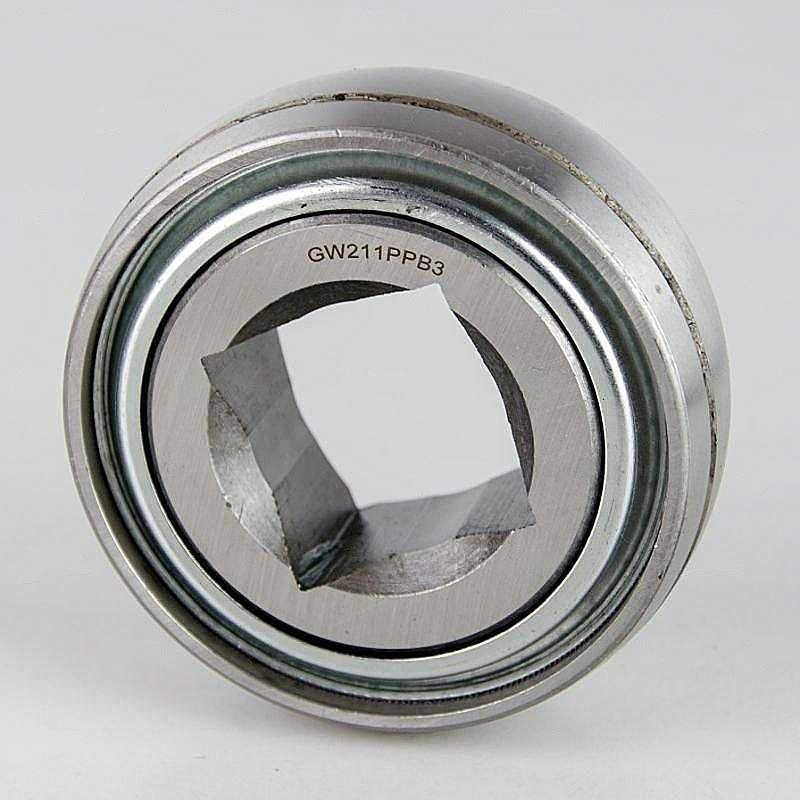

GW211PPB3 RICH Insert Ball Bearing with Square Hole - 38.887 x 100 x 33.3 mm

OE Reference / Interchange:

  • CNH: 630095R91
  • CASE: T51610, 630.095 R91
  • KVERNELAND: KK010501
  • MASSEY FERGUSON: 449432M1, 832540M1

Technical Specifications:

  • Catalog Code: GW211PPB3 RICH
  • Brand: RICH
  • Type: Insert ball bearing with square hole
  • Shaft Size: 1 1/2" (38.1 mm)
  • Square Bore (dk): 38.887 mm
  • Outer Diameter (D): 100 mm
  • Outer Ring Width (C): 33.3 mm
  • Outer Ring Profile: Rounded / Spherical
  • Sealing: Triple lip seal with metal plate cover
  • Weight: 1.064 kg
  • Country of Origin: China

Key Performance Advantages:

  • Square Bore Design: Engineered for agricultural shafts, ensuring high torque transmission and a secure fit on 1 1/2" square axles.
  • Advanced Protection: The triple lip seal, reinforced with a metal shroud, is specifically built for low-speed applications in heavily contaminated environments like mud and dust.
  • Self-Alignment: The spherical outer ring compensates for mounting inaccuracies or shaft deflections common in farming machinery.
  • High Durability: Optimized for the rigorous demands of soil cultivation equipment, ensuring a long service life under heavy radial loads.

Transparency Note: This product is manufactured under the RICH brand. The code GW211PPB3 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
38,887
Outer Diameter
100
Width
33,3
Category
Insert Ball Bearing with Square Hole
