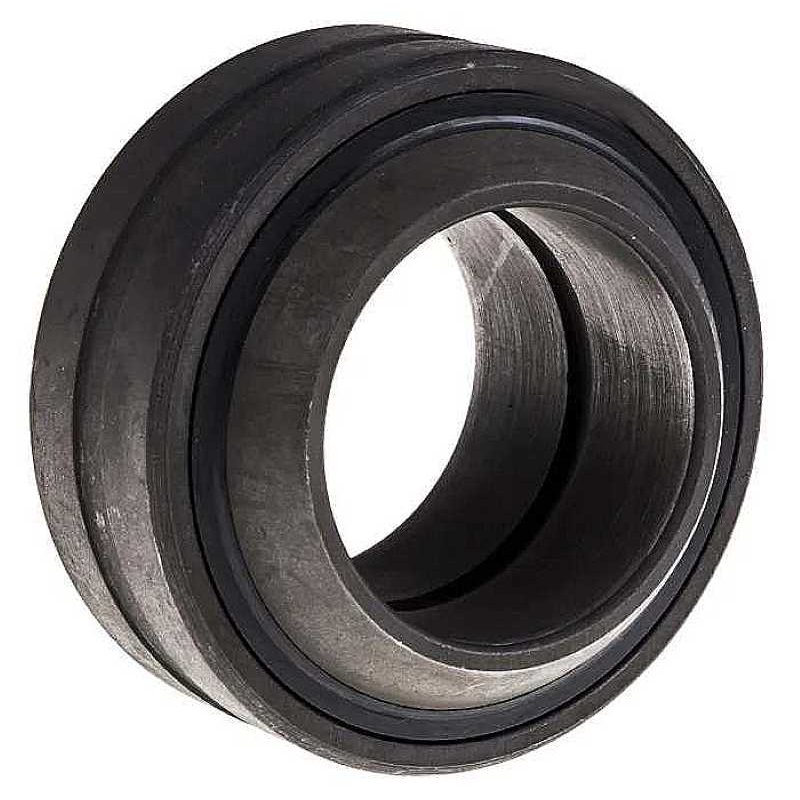

GE 30 FO-2RS RICH Spherical Plain Bearing - 30 x 55 x 32 mm
Technical Specifications:
- Catalog Code: GE 30 FO-2RS RICH
- Brand: RICH
- Type: Spherical plain bearing (Radial)
- Dimensions: 30 x 55 x 32 mm
- Inner Diameter (d): 30 mm
- Outer Diameter (D): 55 mm
- Inner Ring Width (B): 32 mm
- Outer Ring Width (C): 20 mm
- Friction Pair: Steel/Steel
- Sealing: 2RS (Double-sided rubber contact seals)
- Weight: 0.283 kg
- Country of Origin: China
Key Performance Advantages:
- Extended Inner Ring (FO): The increased width of the inner ring allows for significantly larger tilting angles, providing greater flexibility in oscillating movements.
- Steel-on-Steel Construction: Designed for heavy-duty radial loads, capable of managing high static loads and alternating mechanical stresses.
- Integrated 2RS Sealing: Double-sided rubber contact seals protect the sliding surfaces from dust and moisture while effectively retaining grease.
- Relubrication System: Equipped with an annular groove and lubrication holes in both the inner and outer rings for efficient maintenance.
Transparency Note: This product is manufactured under the RICH brand. The code GE 30 FO-2RS is used for identification purposes and does not imply affiliation with other manufacturers.
