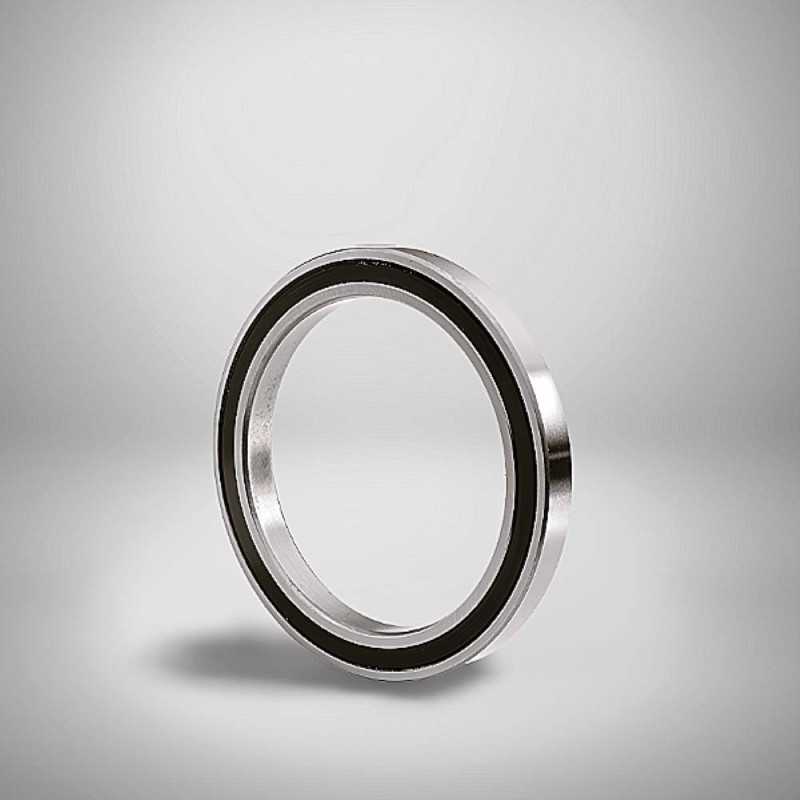

61804.2RS.C3 RICH Single Row Deep Groove Ball Bearing - 20 x 32 x 7 mm

The 61804.2RS.C3 RICH is a single row deep groove ball bearing designed for applications where space and weight are limited, but the ability to handle thermal expansion or higher speeds is still important. This bearing has key dimensions of 20 mm inner diameter, 32 mm outer diameter, and a width of 7 mm. It features a C3 radial clearance, which is greater than normal. It weighs only 0.023 kg and is made in China. The bearing is equipped with double-sided rubber contact seals (2RS) for effective protection against dust, dirt, and moisture. The C3 clearance is suitable for conditions where thermal expansion due to temperature variations or higher rotational speeds are anticipated in compact machinery.

Key Specifications:

  • Bearing Type: Single Row Deep Groove Ball Bearing
  • Model:** 61804.2RS.C3 RICH
  • Inner Diameter (d):** 20 mm
  • Outer Diameter (D):** 32 mm
  • Width (B):** 7 mm
  • Clearance:** C3 (Greater than Normal)
  • Sealing:** Double-sided rubber, contact (2RS)
  • Weight:** 0.023 kg
  • Country of Origin:** China

Key Features:

  • Ultra-Lightweight and Compact:** Ideal for applications with significant space and weight restrictions.
  • Deep Groove Geometry:** Supports radial and axial loads in both directions.
  • C3 Clearance:** Accommodates thermal expansion and suitable for higher speeds.
  • Contact Seals (2RS):** Offers excellent protection against contaminants and helps retain lubricant in small enclosures.
  • Versatile Application:** Used in miniature motors, precision instruments, and other compact electromechanical devices.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
20
Outer Diameter
32
Width
7
Ball Rows
Single Row
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
