  • H 211 RICH 50x55x37 H211 RICH

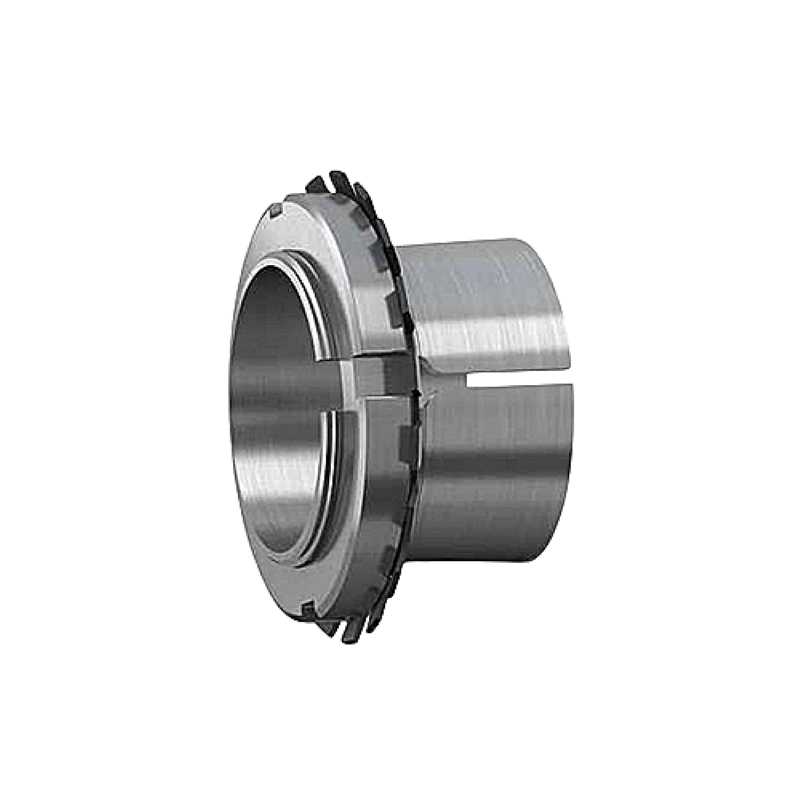

H 211 RICH 50x55x37

Type: Adapter Sleeve
Model: H 211 RICH
Dimensions: 50 x 55 x 37 mm
Components: Sleeve, Nut, and Lock Washer
Brand: RICH
Origin: China
RICH
H211
€2.50
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

H 211 RICH Adapter Sleeve - 50 x 55 x 37 mm

Technical Specifications:

  • Catalog Code: H 211 RICH
  • Brand: RICH
  • Type: Adapter sleeve for tapered bore bearings
  • Shaft Diameter (d1): 50 mm
  • Bore Diameter (d): 55 mm
  • Width (B1): 37 mm
  • Weight: 0.299 kg
  • Country of Origin: China

Key Performance Advantages:

  • High-Strength Mechanical Locking: The RICH brand ensures a dependable interference fit between the shaft and the bearing, preventing axial displacement even under heavy-duty operational cycles.
  • Precise Clearance Control: The tapered design allows for the accurate setting of the bearing internal radial clearance during installation by adjusting the torque applied to the lock nut.
  • Integrated Mounting Set: Each unit is supplied as a complete assembly, including the slotted adapter sleeve, a precision-threaded lock nut, and a multi-tab locking washer for fail-safe security.
  • Versatile Installation: Designed for use on smooth or stepped cylindrical shafts, eliminating the need for expensive shaft machining such as shoulders or specialized threading.
  • Durable Construction: Manufactured from high-tensile steel to resist wear and surface fatigue, ensuring a long and reliable service life in demanding environments.

Transparency Note: This component is manufactured under the RICH brand. The code H 211 is used for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
50
Outer Diameter
55
Width
37
Category
Adapter Sleeve
