61701-2RS RICH 12x18x4

Type: Single Row Deep Groove Ball Bearing (Thin Section)
Model: 61701-2RS RICH
Dimensions: 12 x 18 x 4 mm
Brand: RICH
Origin: China
RICH
61701-2RS

Volume discounts

Quantity Unit price
10 €0.45
20 €0.43
50 €0.41
100 €0.39
€0.50
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

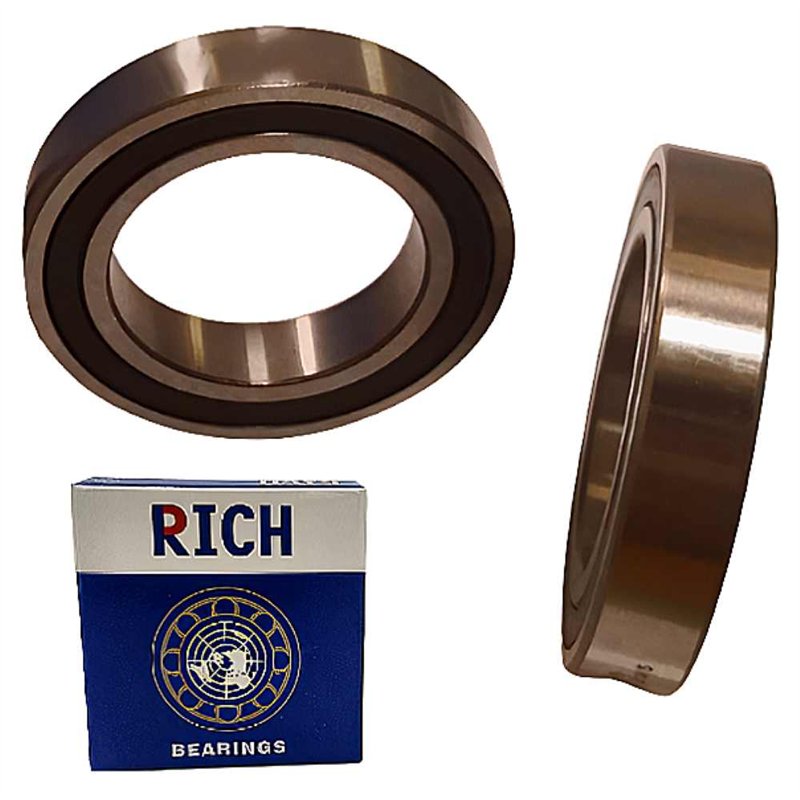

61701-2RS RICH – Single Row Deep Groove Ball Bearing – 12 x 18 x 4 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Product Feature: Ultra-thin section / Compact design
  • Brand: RICH
  • Model Designation: 61701-2RS
  • Inner Diameter (d): 12 mm
  • Outer Diameter (D): 18 mm
  • Width (B): 4 mm
  • Sealing: Double-sided rubber contact seals (2RS)
  • Weight: 0.03 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision-engineered radial ball bearing featuring an ultra-thin section profile, specifically designed for applications where weight reduction and spatial optimization are critical.
  • Protection Mechanism: Equipped with high-integrity double-sided rubber contact seals (2RS) that provide a robust barrier against dust, moisture, and fine environmental contaminants, ensuring internal lubricant retention.
  • Operational Efficiency: The optimized internal geometry and high-quality rolling elements facilitate smooth rotational performance with minimal frictional torque, even in high-speed, low-clearance environments.
  • Mechanical Interface: 12 x 18 x 4 mm dimensional format manufactured to rigorous industrial tolerances, making it a dependable choice for precision instruments, small electric motors, and automated hardware.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
12
Outer Diameter
18
Width
4
Weight
0,001
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
