PA206.G RICH PA206G RICH

PA206.G RICH

Type: Cast Iron Tapped-Base Housing
Model: PA206.G RICH
Bolt Hole Distance: 66 mm
Base Height (F): 42.9 mm
Brand: RICH
Origin: China
RICH
PA206G
€3.31
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

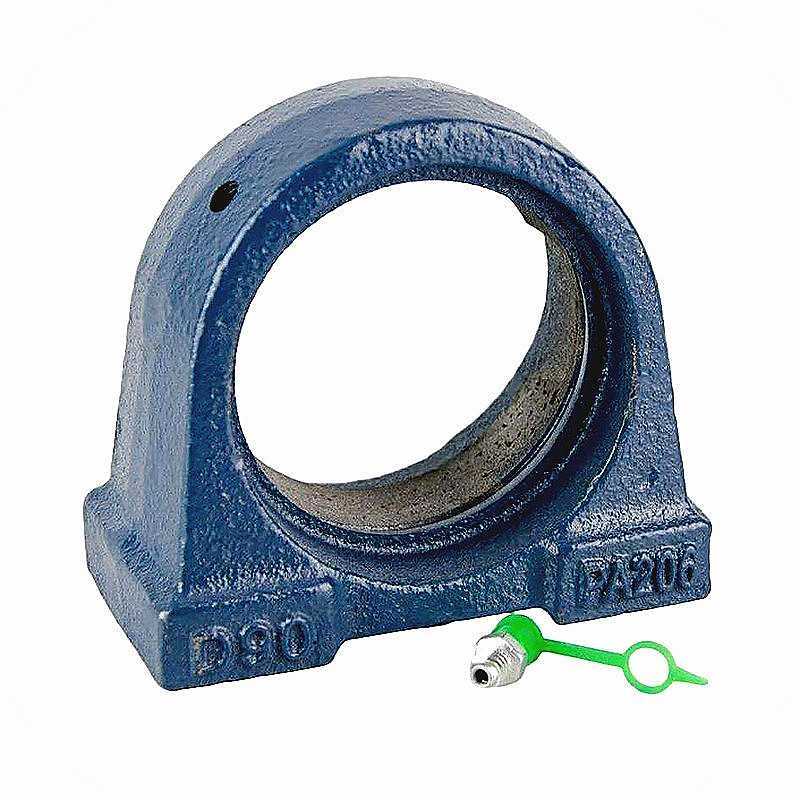

PA206.G RICH Cast Iron Pedestal Pillow Block Housing - 94 mm Length

Technical Specifications:

  • Catalog Code: PA206.G RICH
  • Brand: RICH
  • Type: Cast iron housing (Tapped-base pillow block)
  • Total Length (L): 94 mm
  • Bolt Hole Distance (J): 66 mm
  • Base Width (A): 48 mm
  • Top Width (A1): 25 mm
  • Base to Center Height (F): 42.9 mm
  • Overall Height (F2): 84 mm
  • Weight: 0.811 kg
  • Country of Origin: China

Product Overview:

The PA206.G RICH is a high-grade cast iron tapped-base pillow block housing, often referred to as a pedestal bearing housing. Designed to accommodate 206 series insert bearings (typically with a 30 mm bore), this housing is engineered for applications where space is limited and a traditional two-bolt wide-base flange is not feasible. The tapped-base design allows for mounting from the underside using bolts, providing a clean and compact installation footprint. Constructed from durable gray cast iron, the PA206.G offers excellent vibration dampening and rigid support for rotating shafts. The internal bore of the housing is precision-machined with a spherical seat, allowing the inserted bearing to self-align and compensate for moderate shaft misalignments. This model features a ".G" designation, indicating the inclusion of a lubrication fitting (grease nipple) to facilitate easy re-greasing of the bearing, ensuring a long service life in industrial machinery, packaging equipment, and material handling systems.

Key Performance Advantages:

  • Tapped-Base Design: Ideal for tight mounting spaces where bolts must be threaded directly into the base from below.
  • Vibration Absorption: The heavy cast iron construction effectively minimizes operational noise and machine vibration.
  • Self-Alignment Capability: Features a spherical internal seat that prevents internal bearing stress due to shaft deflection.
  • Integrated Lubrication: Equipped with a grease nipple for convenient maintenance and extended bearing performance.

Transparency Note: This housing is manufactured under the RICH brand. The code PA206.G is used for identification purposes and does not imply affiliation with other manufacturers.
