NUKR 90 RICH 30x90x35

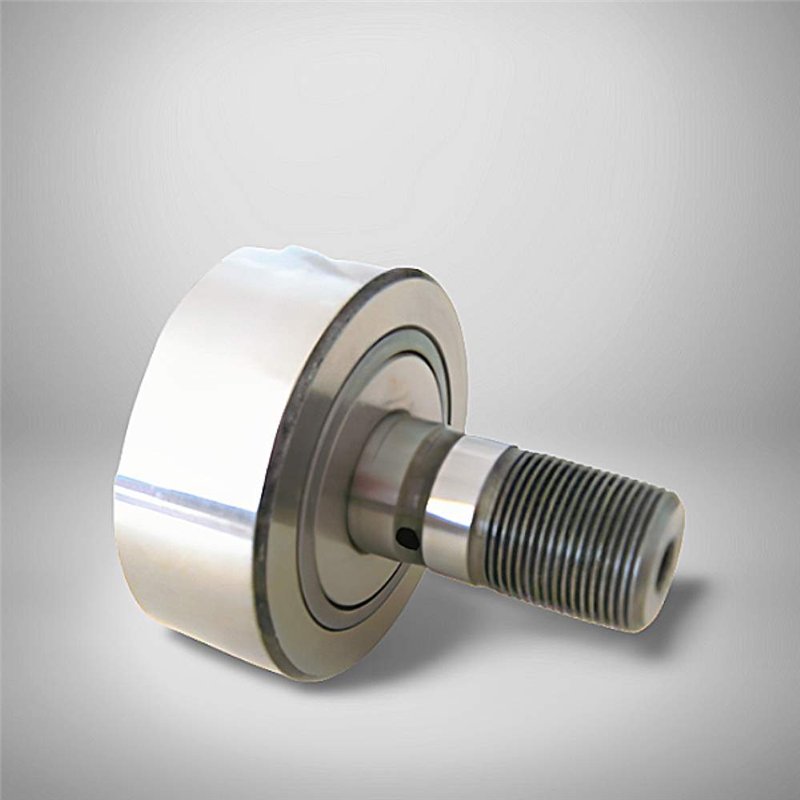

NUKR90 RICH – 30x90x35 mm – Stud Type Track Roller – Rounded Outer Ring with Labyrinth Seals

Technical Specifications:

• Type: Stud Type Track Roller
• Brand: RICH
• Model Designation: NUKR90 RICH
• Stud Diameter: 30 mm
• Outer Diameter (D): 90 mm
• Roller Width (B): 35 mm
• Overall Stud Length (B1): 100 mm
• Thread: M30x1.5
• Cage: None (Full Complement)
• Rounded Outer Ring: Yes
• Sealing: Labyrinths on both sides, for higher temperatures and less friction.
• Weight: 2.228 kg
• Country of Origin: China

The NUKR90 RICH stud type track roller is a high-performance component engineered for precise and robust guidance in various linear motion systems, cam mechanisms, and conveyor applications. Manufactured by RICH, this track roller features dimensions of 30x90x35 mm (stud diameter x outer diameter x roller width), an overall stud length of 100 mm, and weighs 2.228 kg, offering reliable and smooth operation.

A key feature of the NUKR90 RICH is its integrated stud, providing a self-contained and easy-to-mount unit for track and cam follower applications. The rounded outer ring ensures smooth running with reduced edge stresses, particularly when operating on flat tracks or against rails, contributing to quieter operation and extended track life. This track roller incorporates labyrinth seals on both sides, providing effective protection against contaminants while ensuring lower friction and suitability for higher operating temperatures compared to contact seals. The design without a cage (full complement of rollers) maximizes the load-carrying capacity, making it highly resilient under heavy radial loads. Equipped with an M30x1.5 thread, it offers secure and easy mounting. Proudly produced in China, the NUKR90 RICH track roller guarantees consistent quality, high efficiency, and exceptional durability, making it an excellent choice for a wide range of industrial machinery where precise guidance, high load capacity, and robust sealing are crucial.

Key Advantages:

• Integrated Stud: Provides a self-contained, easy-to-mount unit for various applications.
• Rounded Outer Ring: Ensures smooth running, reduced stress, and quieter operation on tracks.
• Labyrinth Sealing: Offers robust contamination protection with low friction, suitable for higher temperatures.
• High Load Capacity: Full complement design maximizes radial load-carrying capability.
• A RICH product, symbolizing consistent quality and reliable performance, made in China.
