KFL08 RICH 8x48x27 KFL08 RICH
zoom_out_map
KFL08 RICH 8x48x27 KFL08 RICH

KFL08 RICH 8x48x27

Type: Zinc Alloy Pillow Block
Model: KFL08 RICH
Dimensions: 8 x 48 x 27 mm
Brand: RICH
Origin: China
RICH
KFL08
€9.39
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

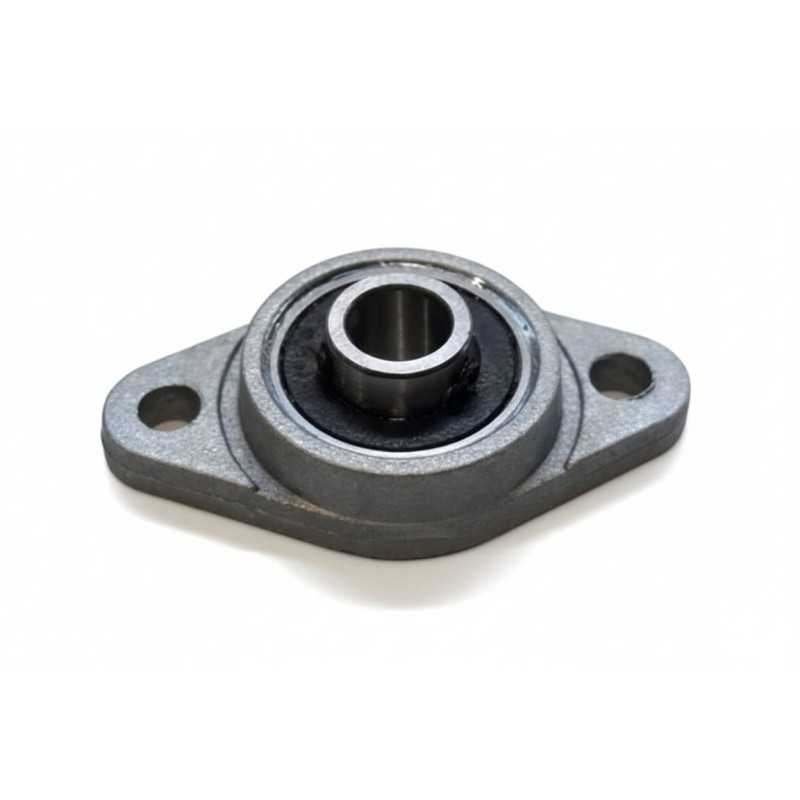

KFL08 RICH Zinc Alloy Flanged Pillow Block Bearing – 8 × 48 × 27 mm

Technical Specifications:

  • Type: Pillow block with zinc alloy housing (Flanged)
  • Brand: RICH
  • Model Designation: KFL08 RICH
  • Bore Diameter (d): 8 mm
  • Total Length (L): 48 mm
  • Total Width (L2): 27 mm
  • Total Height (A): 8.5 mm
  • Mounting Hole Distance (J): 37 mm
  • Flange Thickness (A1): 4 mm
  • Mounting Bolt Hole (N): 4.8 mm
  • Weight: 0.028 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Two-bolt miniature flanged housing with a self-aligning ball bearing insert.
  • Material Type: Lightweight zinc alloy housing providing corrosion resistance and compact dimensions.
  • Locking Mechanism: Set screw locking system for secure shaft attachment.
  • Dimensional Format: 8 × 48 × 27 mm configuration optimized for small-scale machinery and 3D printers.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
8
Outer Diameter
0
Width
0
