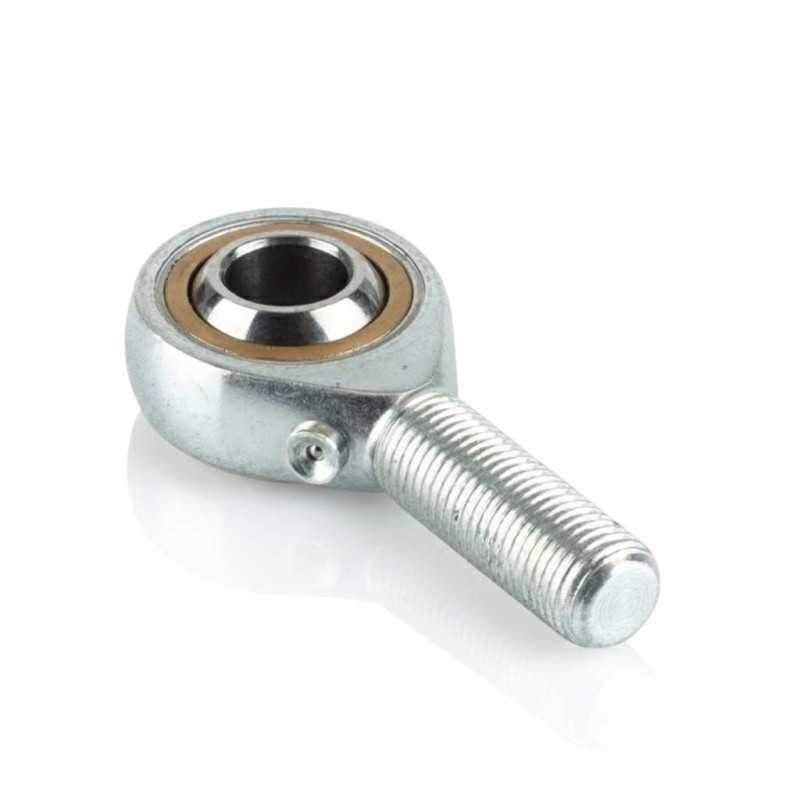

RGAS 12x1.25 RICH – Rod End | Thread Size M12x1,25

RGAS 12x1.25 RICH – Rod End – 12 x 32 x 54 mm

Technical Specifications:

• Type: Rod end with male thread (Regreasable configuration)
• Brand: RICH
• Model Designation: RGAS 12x1.25
• Inner Diameter (d): 12 mm
• Outer Diameter (A): 32 mm
• Height to Axis (F): 54 mm
• Thread Size: M12 x 1.25 (Fine pitch)
• Thread Length (GL): 32 mm
• Outer Ring Width (C): 12 mm
• Inner Ring Width: 16 mm
• Friction Pair: Steel/Bronze
• Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
• Dimensional Series: K
• Weight: 0.098 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing manufactured from free-cutting steel with a zinc-plated surface finish.
• Lubrication Feature: Housing assembly equipped with an integrated grease nipple for re-lubrication of the internal contact surfaces.
• Sliding Configuration: Internal components utilizing a steel on bronze friction pair arranged for articulated movement.
• Dimensional Format: Technical profile compliant with dimensional series K standards.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
