R1532-4-9006 RICH 11,4x22x33

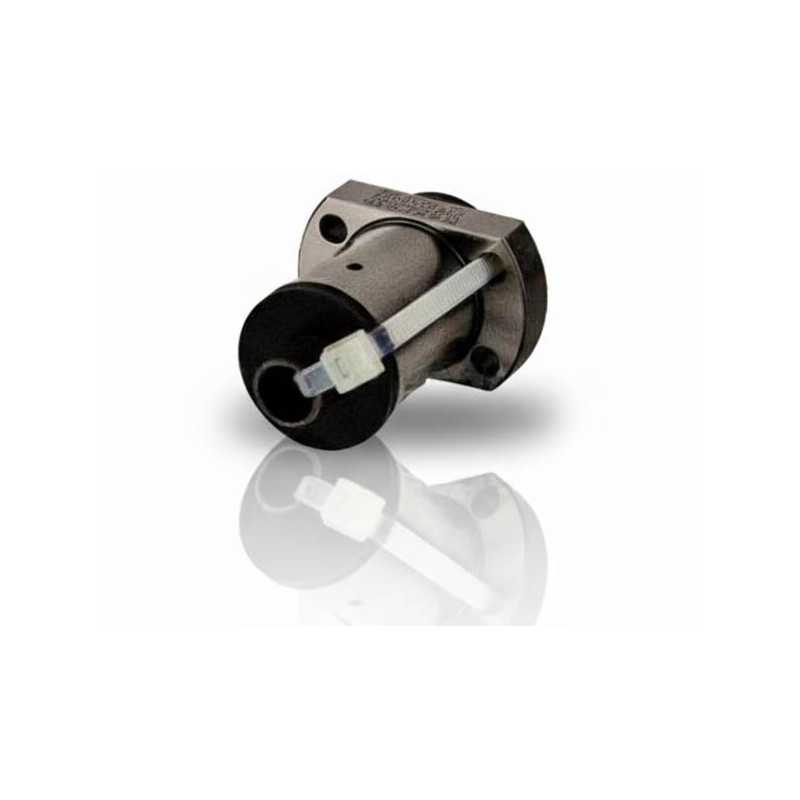

R1532-4-9006 RICH Ballscrew Nut – 11.4 × 22 × 33 mm

OE References:

• BOSCH REXROTH FEM-E-B 12X10RX2-2

Technical Specifications:

• Type: Ballscrew nut
• Brand: RICH
• Model Designation: R1532-4-9006 RICH
• Outer Diameter (D): 22 mm
• Flange Diameter: 37 mm
• Pitch Diameter (D2): 29 mm
• Total Length (L): 33 mm
• Stroke/Lead: 10 mm
• Direction of Lead: (R) Right
• Flange: Yes
• Weight: 0.137 kg
• Compatibility: R1531-4-9500 (T5), R1531-4-9700 (T7)
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Precision ballscrew nut with an integrated flange (FEM-E-B type) designed for high-efficiency linear motion.
• Motion Specifications: Features a 10 mm stroke per revolution with a right-hand lead direction.
• Mounting Configuration: Equipped with a 37 mm diameter flange for secure attachment to moving components.
• System Compatibility: Engineered for use with R1531-4 series screws, specifically supporting T5 and T7 tolerance classes.
• Material Composition: Fabricated from high-carbon chromium steel for surface hardness and precision translational accuracy.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
