RGASW 10x1,25 RICH 10x28x48

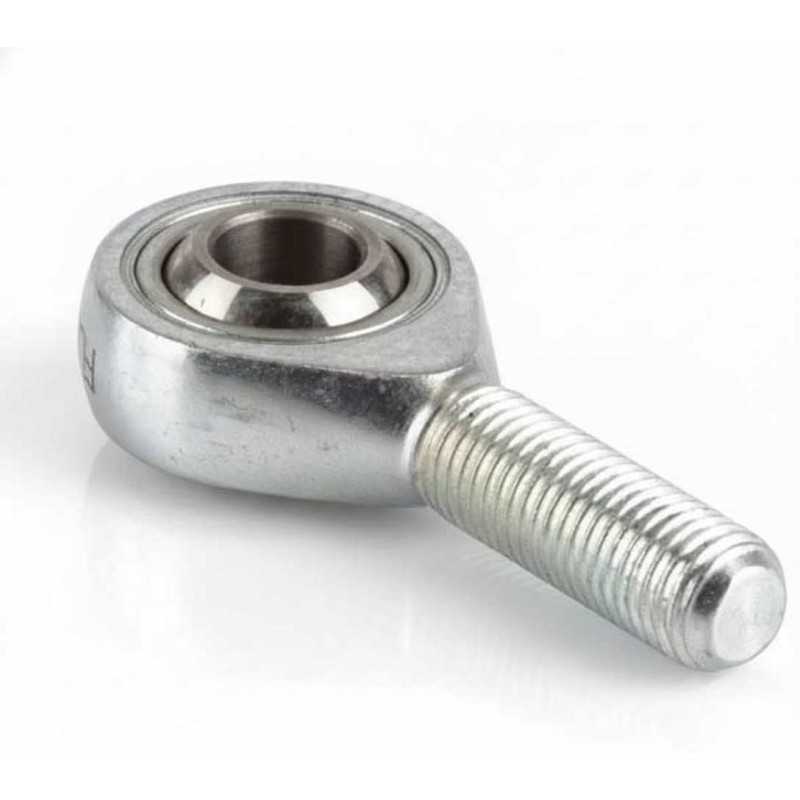

RGASW 10x1.25 RICH – Rod End – 10 x 28 x 48 mm

Technical Specifications:

• Type: Rod end with male thread (Maintenance-free)
• Brand: RICH
• Model Designation: RGASW 10x1.25
• Inner Diameter (d): 10 mm
• Outer Diameter (A): 28 mm
• Height to Axis (F): 48 mm
• Thread Size: M10x1.25 (Fine pitch)
• Thread Length (GL): 28 mm
• Outer Ring Width (C): 10.5 mm
• Friction Pair: Steel/PTFE
• Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
• Dimensional Series: K
• Weight: 0.066 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing constructed from high-strength free-cutting steel with a protective zinc plating.
• Maintenance Profile: Self-lubricating system utilizing a high-performance PTFE liner for maintenance-free operation under dynamic loading conditions.
• Friction Interface: Steel on PTFE sliding contact surface designed to minimize friction and prevent stick-slip during articulation.
• Dimensional Format: Technical profile according to series K standards, featuring a specialized fine-pitch thread for precise mechanical connectivity.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
