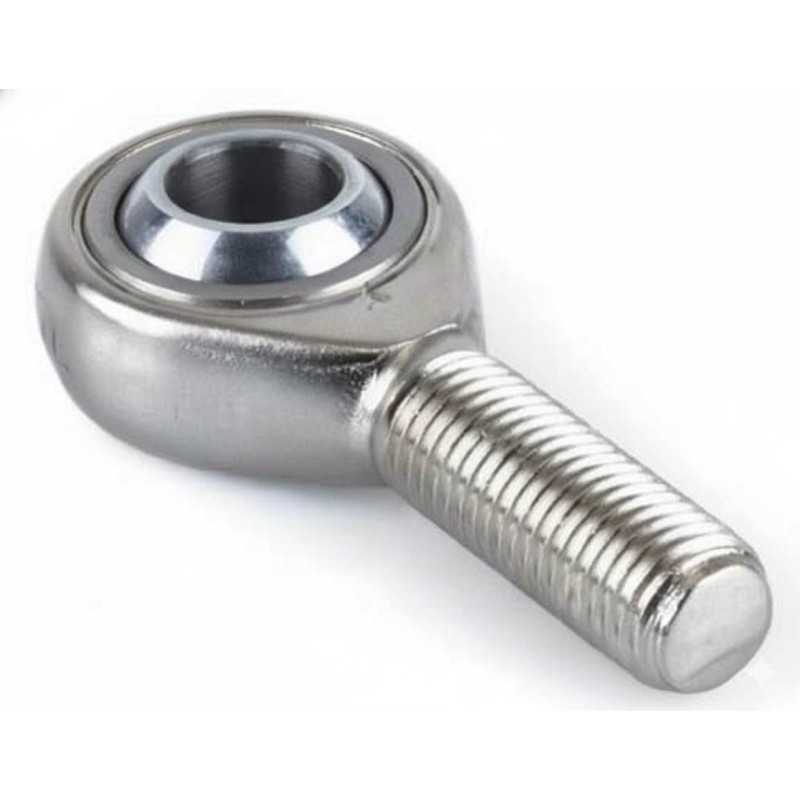

RGALXSW 14 RICH – Rod End – Thread Size: M14

RGALXSW 14 RICH – Rod End – 14 × 36 × 60 mm

Technical Specifications:

• Type: Maintenance-free rod end with male thread
• Brand: RICH
• Model Designation: RGALXSW 14
• Bore Diameter (d): 14 mm
• Housing Diameter (A): 36 mm
• Center Height (F): 60 mm
• Thread Size: M14
• Thread Length (GL): 38 mm
• Outer Ring Width (C): 13.5 mm
• Inner Ring Width: 19 mm
• Sliding Pair: Steel / PTFE
• Housing Material: High-strength alloy steel (42CrMo4 / 1.7225 / AISI 4140)
• Series: K dimensional series
• Weight: 0.134 kg
• Country of Origin: China

Design Characteristics:

• Housing Structure: Zinc-coated alloy steel body (42CrMo4) with integrated male thread for direct installation.
• Sliding Contact: Steel/PTFE friction system designed to reduce wear and ensure stable operation without maintenance.
• Internal Design: Spherical plain bearing with integrated PTFE liner for smooth articulation and reduced friction.
• Dimensional Layout: Compact 14 × 36 × 60 mm geometry aligned with K-series standard configuration.

Transparency Note: This component is produced under the RICH brand. Any reference to OEM or interchangeable codes is provided strictly for identification purposes and does not imply any affiliation with other manufacturers.
