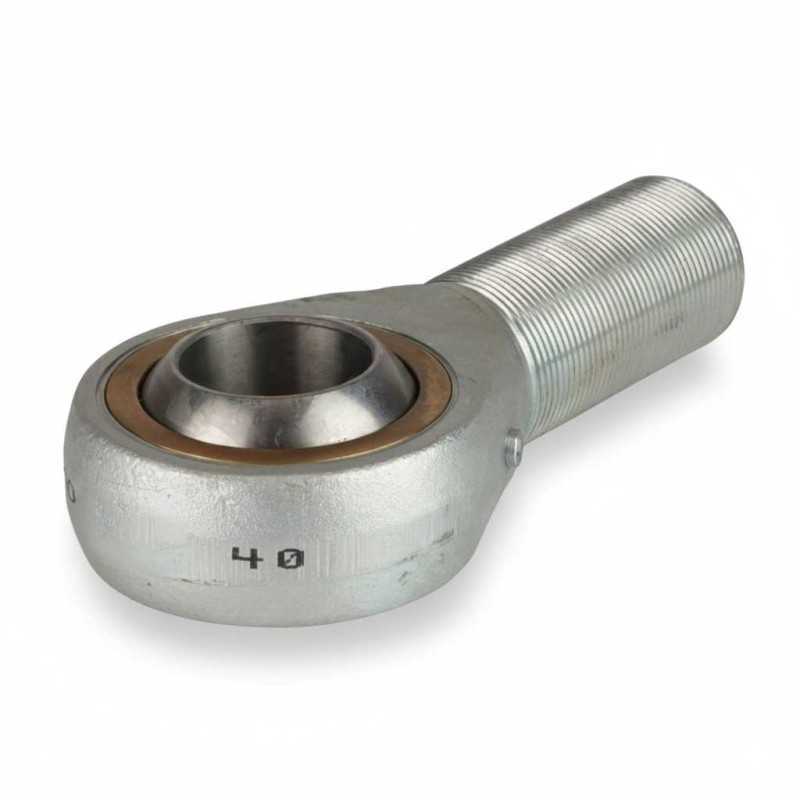

RGAS 40 RICH – Rod End | Thread Size: M40 GAS40 RICH
zoom_out_map
RGAS 40 RICH – Rod End | Thread Size: M40 GAS40 RICH

RGAS 40 RICH – Rod End | Thread Size: M40

Type: Rod End with Male Thread (Regreasable)
Model: RGAS 40 RICH
Dimensions: 40 mm Bore x 142 mm Height
Material: Zinc Plated Steel/Bronze
Brand: RICH
Origin: China
RICH
GAS40
€111.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGAS 40 RICH – Rod End – 40 x 90 x 142 mm

Technical Specifications:

  • Type: Rod end with male thread (Regreasable configuration)
  • Brand: RICH
  • Model Designation: RGAS 40
  • Inner Diameter (d): 40 mm
  • Outer Diameter (A): 90 mm
  • Height to Axis (F): 142 mm
  • Thread Size: M40
  • Thread Length (GL): 78 mm
  • Outer Ring Width (C): 35 mm
  • Inner Ring Width: 49 mm
  • Friction Pair: Steel/Bronze
  • Housing Material: Carbon construction steel (C22 / AISI 1020)
  • Dimensional Series: K
  • Weight: 2.508 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Male-threaded rod end housing manufactured from AISI 1020 carbon construction steel with a zinc-plated surface finish.
  • Lubrication Feature: Housing assembly equipped with an integrated grease nipple for re-lubrication of the internal contact surfaces.
  • Sliding Configuration: Internal components utilizing a steel on bronze friction pair arranged for articulated movement.
  • Dimensional Format: Technical profile compliant with dimensional series K standards.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Category
Rod End
