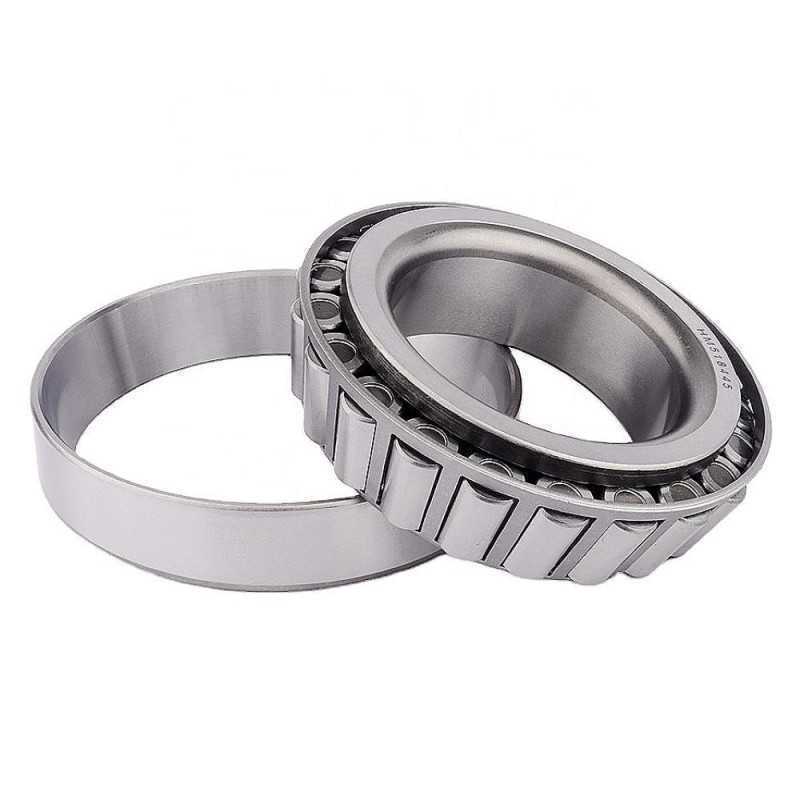

JL68145/68111 RICH Single Row Tapered Roller Bearing – 35 x 60 x 18.45 mm
The JL68145/68111 RICH is a precision-engineered single row tapered roller bearing, designed to manage combined radial and axial loads in one direction. Featuring a robust design with tapered rollers and conical raceways, it is ideal for use in automotive, industrial, and agricultural applications where durability and efficiency are critical.
Key dimensions include a 35 mm inner diameter, 60 mm outer diameter, and a total width (T) of 18.45 mm. The outer ring width (C) is 11.938 mm, and the inner ring width is 18.46 mm. Weighing 0.192 kg, this bearing is manufactured in China by RICH with a focus on performance and reliability.
As a standard tapered bearing, the cone (inner ring with rollers) and cup (outer ring) are separable, allowing for easier mounting and adjustment of axial clearance. This bearing is typically installed in pairs to accommodate forces from both directions.
Key Specifications:
- Bearing Type: Single Row Tapered Roller Bearing
- Model: JL68145/68111 RICH
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 60 mm
- Total Width (T): 18.45 mm
- Outer Ring Width (C): 11.938 mm
- Inner Ring Width: 18.46 mm
- Weight: 0.192 kg
- Country of Origin: China
Key Features:
- Optimized for radial and axial loads in one direction
- Separable design for easy mounting and maintenance
- Adjustable axial clearance for precise fit and performance
- High durability and reliability under dynamic load conditions
- Ideal for use in pairs in complex assemblies
- Made by RICH in China, ensuring consistent quality
Data sheet
Inner Diameter
35
Outer Diameter
60
Width
15,875
Weight
0,192
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
