RGLRSW 10 SS RICH 10x26x14 | Stainless Steel

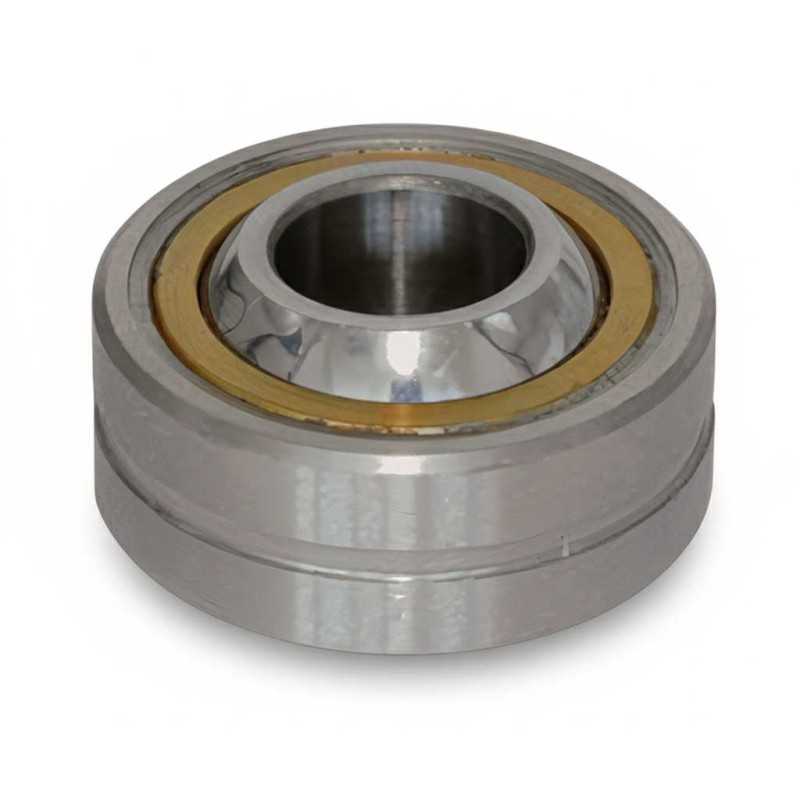

RGLRSW 10 SS RICH – Stainless Steel Spherical Plain Bearing – 10 x 26 x 14 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGLRSW 10 SS
• Inner Diameter (d): 10 mm
• Outer Diameter (D): 26 mm
• Inner Ring Width (B): 14 mm
• Outer Ring Width (C): 10.5 mm
• Sphere Diameter (dk): 19.05 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Dimensional Series: K
• Weight: 0.038 kg
• Country of Origin: China

Performance Characteristics:

• Material Integrity: Constructed with a martensitic stainless steel inner ring for superior resistance to oxidation and chemical degradation.
• Sliding Configuration: Maintenance-free operation enabled by a stainless steel on PTFE composite friction pair, eliminating the need for periodic lubrication.
• Operational Capability: Specifically engineered to handle high dynamic pressure and tension loads within corrosive environments.
• Dimensional Format: Technical profile compliant with dimensional series K standards, suitable for high-precision articulated applications.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
