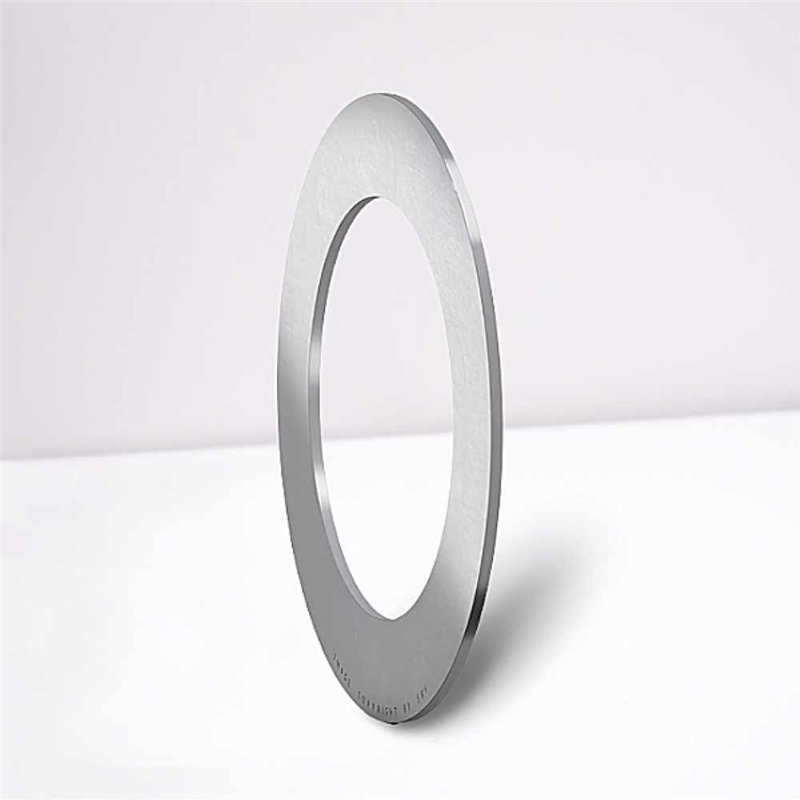

AS 0515 RICH Miniature Axial Bearing Washer - 5 x 15 x 1 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Product Feature: Miniature
  • Model Designation: AS 0515
  • Brand: RICH
  • Bore Diameter (d): 5 mm
  • Outer Diameter (D): 15 mm
  • Thickness (H): 1 mm
  • Weight: 0.001 kg
  • Country of Origin: China

The AS 0515 RICH is a precision-manufactured miniature axial bearing washer, produced by RICH to serve as a high-quality raceway for very small axial needle roller and cage assemblies. Its precise dimensions of 5 mm bore, 15 mm outer diameter, and a minimal 1 mm thickness ensure the lowest possible axial space occupation while providing a hardened, flat, and rigid running surface. This component is crucial when adjacent machine components cannot be used as raceways due to required hardness or flatness, allowing for easy installation and removal. The washer is designed to support axial loads and maintain stability in compact, high-precision assemblies, typical of small mechanisms and instruments.

Key Performance Advantages:

  • Miniature Size: Ideal for extremely small and highly compact bearing arrangements.
  • High-Precision Raceways: Provides an optimal, hardened running surface for small axial needle rollers.
  • Minimal Axial Space: Extremely thin profile (1 mm thickness) for critical space-saving designs.
  • RICH Quality: Ensures high rigidity and support for axial loads in delicate machinery.

Data sheet

Inner Diameter
5
Outer Diameter
15
Width
1
Weight
0,001
Category
Axial Bearing Washer
