RGLRSW 18 SS RICH 18x42x23 | Stainless Steel

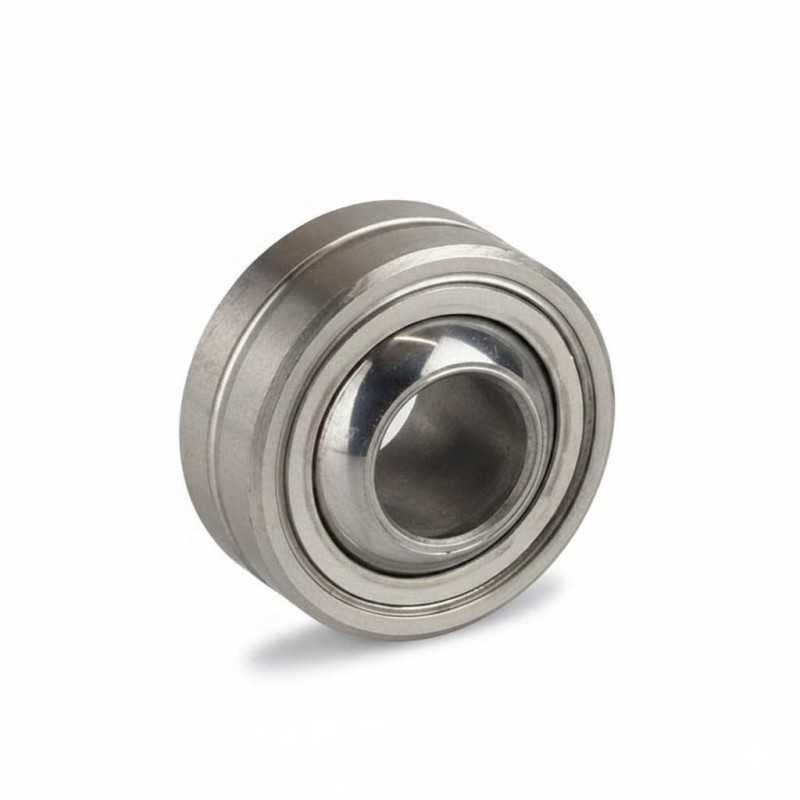

RGLRSW 18 SS RICH – Stainless Steel Spherical Plain Bearing – 18 x 42 x 23 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGLRSW 18 SS
• Inner Diameter (d): 18 mm
• Outer Diameter (D): 42 mm
• Inner Ring Width (B): 23 mm
• Outer Ring Width (C): 16.5 mm
• Sphere Diameter (dk): 31.75 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Insert Material: Stainless steel (AISI 316Ti / 1.4571) with PTFE
• Dimensional Series: K
• Weight: 0.15 kg
• Country of Origin: China

Performance Characteristics:

• Material Integrity: Engineered with a martensitic stainless steel inner ring and a high-grade AISI 316Ti stainless steel insert to provide maximum resistance against oxidation and chemical corrosion.
• Sliding Configuration: Maintenance-free technical design utilizing a stainless steel on PTFE composite friction pair, eliminating the need for periodic lubrication.
• Operational Capability: Specifically engineered to maintain structural reliability under high dynamic pressure and tension loads in aggressive or corrosive environments.
• Dimensional Format: Technical profile compliant with dimensional series K standards for industrial articulation and mechanical linkage systems.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
