NF 307 P6 RICH 35x80x21

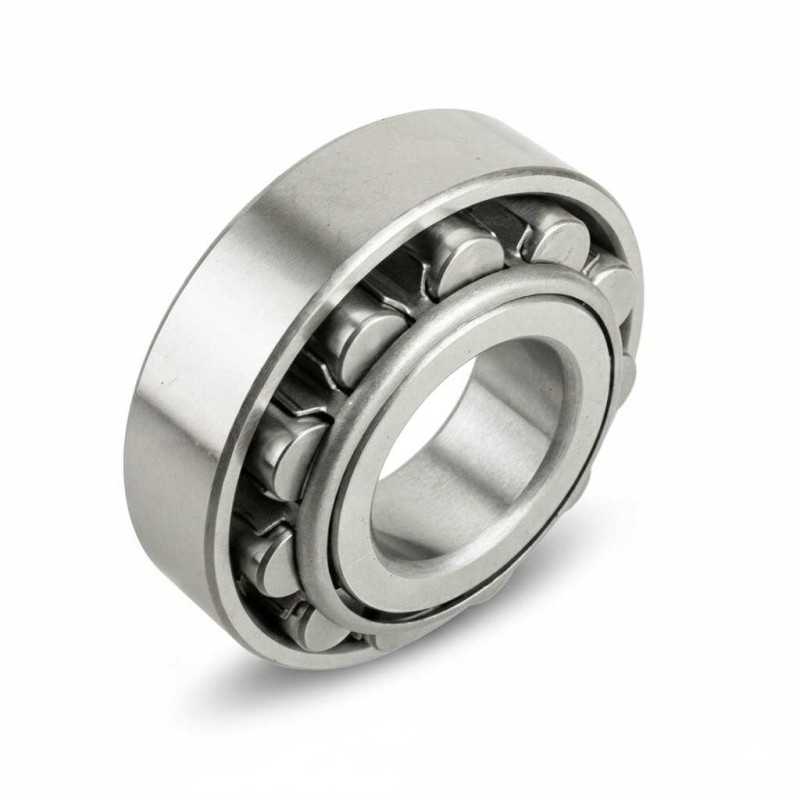

NF 307 P6 RICH – Single Row Cylindrical Roller Bearing – 35 x 80 x 21 mm

Technical Specifications:

• Type: Single row cylindrical roller bearing (NF Design)
• Brand: RICH
• Model Designation: NF 307 P6
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 80 mm
• Width (B): 21 mm
• Precision Class: P6 (Higher precision than standard)
• Internal Clearance: CN (Normal clearance)
• Cage Material: Steel
• Material: High-grade bearing steel
• Weight: 0.47 kg
• Country of Origin: China

Performance Characteristics:

• Enhanced Precision: Manufactured to P6 tolerance standards, ensuring superior rotational accuracy and reduced vibration during high-speed operation.
• NF Design Profile: Constructed with two integral ribs on the inner ring and one integral rib on the outer ring, allowing for axial displacement of the shaft in one direction.
• Load Management: Specifically optimized for supporting heavy radial loads, with a robust steel cage that ensures uniform roller distribution and stable guidance.
• Mechanical Efficiency: The combination of high-precision finishing and standard CN clearance makes this unit ideal for applications requiring consistent performance and low friction.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
