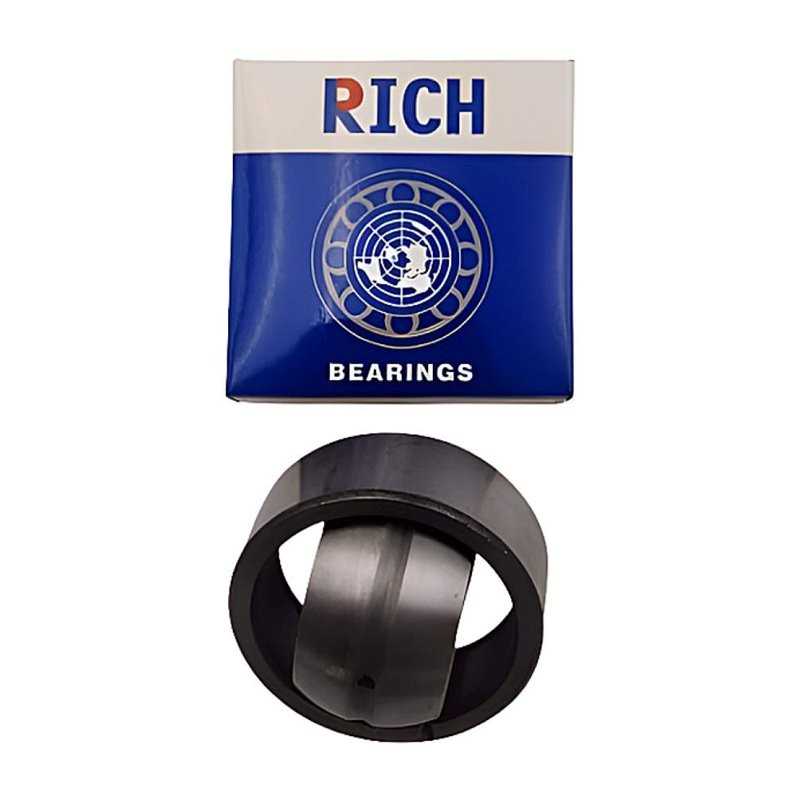

GE 80 ES-2RS RICH Spherical Plain Bearing - 80 x 130 x 75 mm
Technical Specifications:
- Brand: RICH
- Type: Spherical Plain Bearing
- Dimensions: 80 x 130 x 75 mm
- Outer Ring Width (C): 50 mm
- Friction Pair: Steel/Steel
- Sealing: Double-sided contact rubber seals (2RS)
- Weight: 3.58 kg
- Country of Origin: China
The GE 80 ES-2RS RICH is a robust spherical plain bearing designed to accommodate misalignment between the shaft and the housing. Its design features a hardened inner ring with a spherical outer surface that fits into a correspondingly spherical, but fractured, outer ring. The ES designation indicates that the outer ring has a fracture slot, which simplifies the mounting process. The steel/steel friction pair is durable and suitable for heavy loads, and the bearing comes equipped with double-sided rubber seals (2RS). These seals provide excellent protection against dust, dirt, and moisture, while also helping to retain lubricant, thereby extending the bearing's service life and reducing maintenance needs. This RICH bearing is ideal for applications that involve oscillating, tilting, and swiveling movements in demanding and contaminated environments, such to as in hydraulic cylinders and heavy machinery.
Key Performance Advantages:
- Accommodates Misalignment: The spherical design compensates for angular misalignment between the shaft and housing.
- Effective Sealing (2RS): Double seals protect internal components from contaminants and prolong service life.
- Robust Construction: Features a durable steel/steel friction pair for high load capacity.
- Simplified Mounting (ES): The fractured outer ring allows for easier installation.
- RICH Quality: A reliable and resilient solution for demanding mechanical systems.
Data sheet
Inner Diameter
80
Outer Diameter
130
Width
75
Weight
3,58
Sealing
Lip Seal On Both Sides
