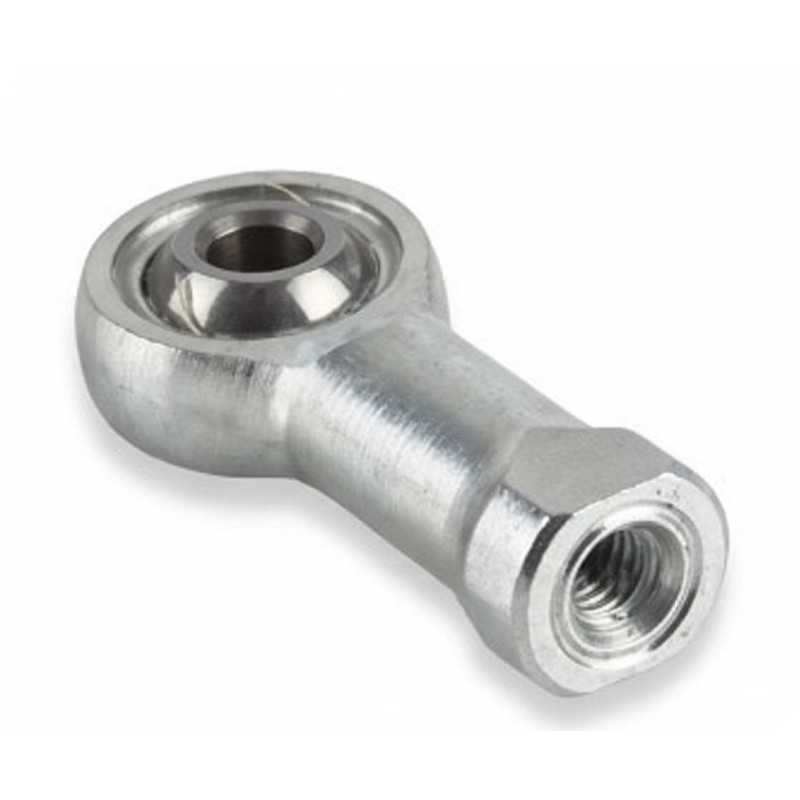

RGILOW 4 RICH – Rod End - Thread Size: M4

RGILOW 4 RICH – Rod End – 4 × 14 × 24 mm

Technical Specifications:

• Type: Rod end with female thread
• Brand: RICH
• Model Designation: RGILOW 4
• Inner Diameter (d): 4 mm
• Outer Diameter (A): 14 mm
• Height to Axis (F): 24 mm
• Thread Size: M4
• Thread Length (GL): 12 mm
• Outer Ring Width (C): 5.25 mm
• Inner Ring Width: 7 mm
• Friction Pair: Steel / PTFE
• Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
• Dimensional Series: K
• Weight: 0.012 kg
• Country of Origin: China

Construction Features:

• Housing: Zinc-plated free-cutting steel housing with internal female thread.
• Configuration: Non-inserted structure without intermediate seat.
• Sliding Interface: Steel on PTFE friction pair.
• Dimensional Format: 4 × 14 × 24 mm configuration aligned with series K.

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
