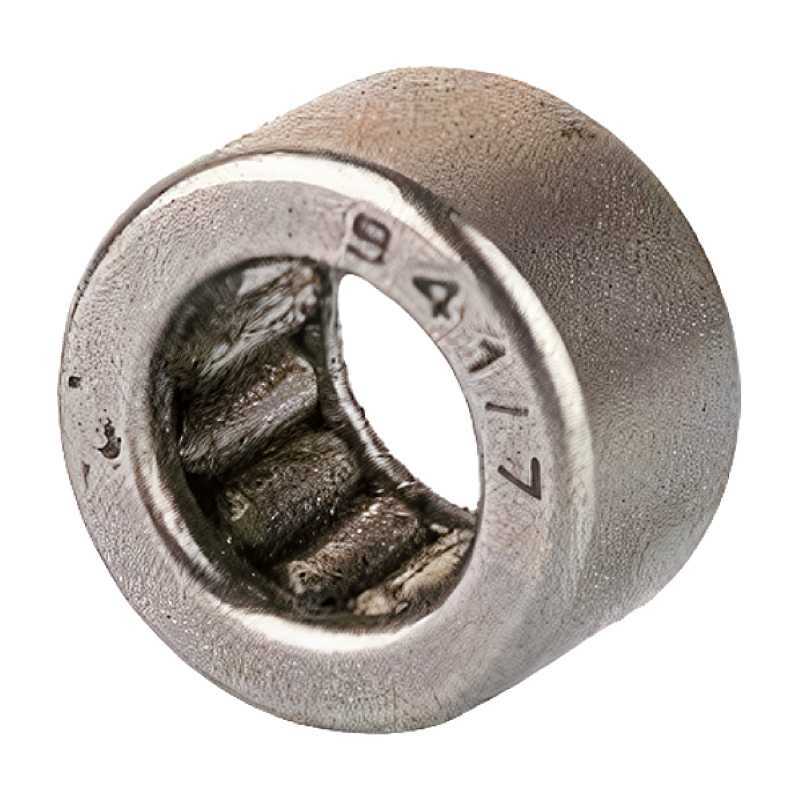

941/7 RICH 7x12x8
The 941/7 RICH needle roller bearing (7 x 12 x 8 mm) without an inner ring is a full complement design, providing maximum load capacity in a highly compact assembly.
941/7 RICH Needle Roller Bearing without Inner Ring - 7 x 12 x 8 mm
Technical Specifications:
- Product Type: Needle Roller Bearing without Inner Ring
- Model Designation: 941/7
- Brand: RICH
- Bore Diameter (ID): 7 mm
- Outer Diameter (OD): 12 mm
- Width: 8 mm
- Cage Material: None (Full Complement)
- Weight: 0.003 kg
- Country of Origin: China
The 941/7 RICH is a micro needle roller bearing without an inner ring, designed for applications where a compact cross-section and maximum radial load capacity are critical. As a cage-less (full complement) design, it incorporates the largest possible number of needle rollers, resulting in superior load-carrying ability. This configuration is intended to run directly on a hardened and ground shaft raceway, eliminating the need for a separate inner ring and maximizing space utilization. With tiny dimensions of 7 mm bore, 12 mm outer diameter, and 8 mm width, the 941/7 RICH provides a powerful, space-saving solution for small transmissions, gears, and precise machinery.
Key Performance Advantages:
- Maximum Load Capacity: Cage-less (full complement) design allows for the highest possible radial load.
- Extreme Space Saving: Minimal radial cross-section achieved by omitting the inner ring.
- Compact Dimensions: Small form factor (7 x 12 x 8 mm) ideal for miniaturized assemblies.
- RICH Quality: A durable component for reliable high-load performance on a prepared shaft.
Data sheet
Inner Diameter
7
Outer Diameter
12
Width
8
Weight
0,03
Category
Needle Roller Bearing
