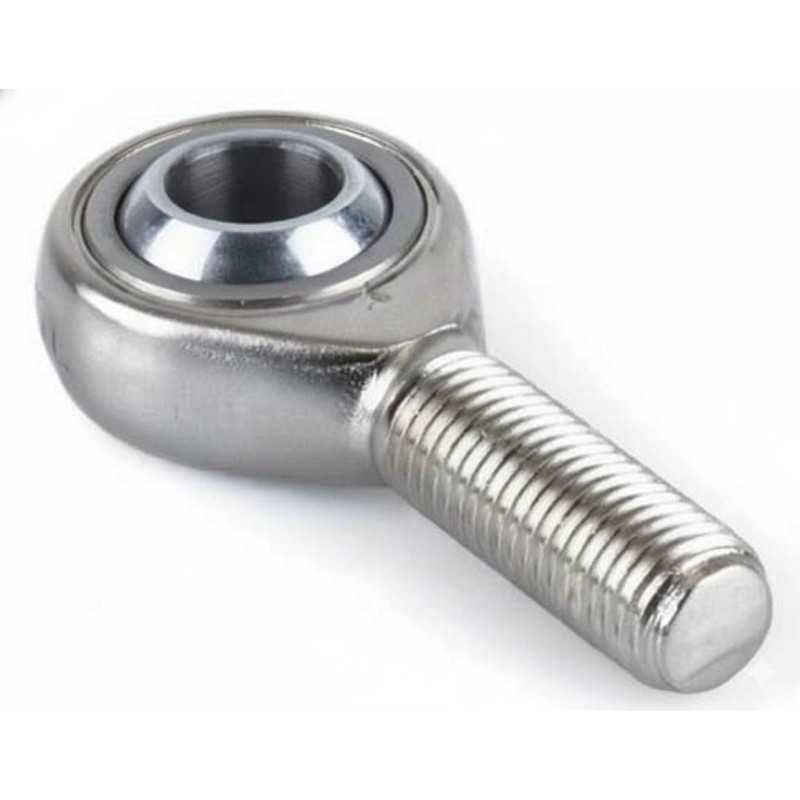

RGALXSW 16x1.5 RICH – Rod End – Thread M16x1.5

RGALXSW 16x1.5 RICH – Rod End – 16 × 42 × 66 mm

Technical Specifications:

• Type: Rod end with male thread (Maintenance-free)
• Brand: RICH
• Model Designation: RGALXSW 16x1.5
• Inner Diameter (d): 16 mm
• Outer Diameter (A): 42 mm
• Height to Axis (F): 66 mm
• Thread Size: M16 x 1.5 (Fine pitch)
• Thread Length (GL): 40 mm
• Outer Ring Width (C): 15 mm
• Inner Ring Width: 21 mm
• Friction Pair: Steel / PTFE
• Housing Material: Alloy steel (42CrMo4 / 1.7225 / AISI 4140)
• Dimensional Series: K
• Dynamic Load Rating: 52,500 N
• Weight: 0.203 kg
• Country of Origin: China

Construction Features:

• Housing: Zinc-plated alloy steel (42CrMo4) body with integrated male fine thread.
• Sliding Interface: Steel on PTFE friction pair.
• Internal Configuration: Maintenance-free spherical plain bearing with integrated PTFE liner.
• Dimensional Format: 16 × 42 × 66 mm configuration aligned with series K.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
