REAL 17 2RS RICH - Thread Size: M16

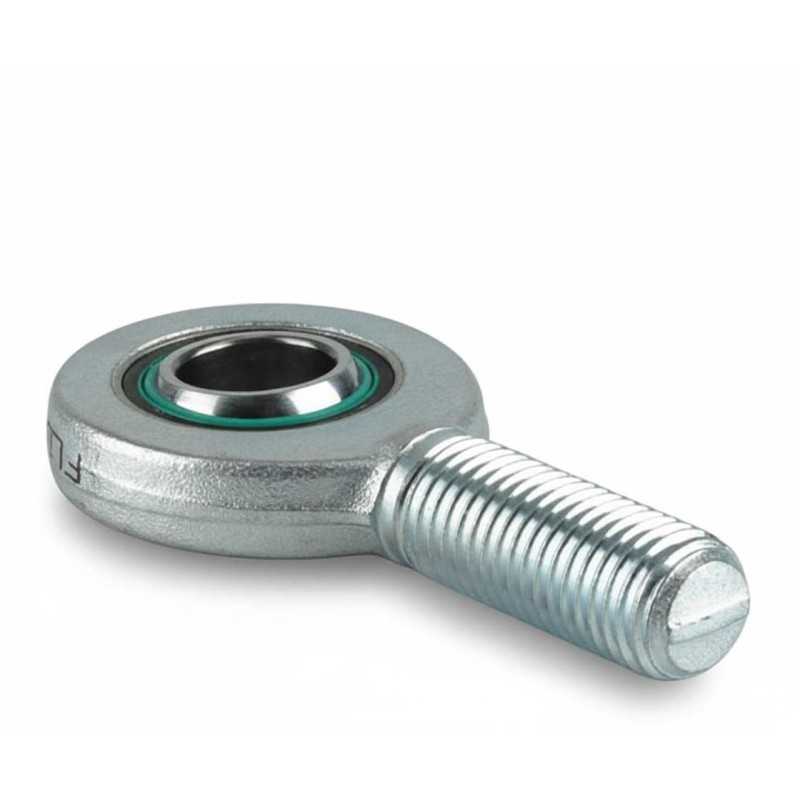

REAL 17 2RS RICH – Rod End – 17 × 46 × 69 mm

Technical Specifications:

• Type: Rod end with male thread (Maintenance-free)
• Brand: RICH
• Model Designation: REAL 17 2RS
• Inner Diameter (d): 17 mm
• Outer Diameter (A): 46 mm
• Height to Axis (F): 69 mm
• Thread Size: M16
• Thread Length (GL): 36 mm
• Outer Ring Width (C): 11 mm
• Inner Ring Width: 14 mm
• Friction Pair: Steel / PTFE
• Sealing: Double-sided rubber seals (2RS)
• Dimensional Series: E
• Weight: 0.194 kg
• Country of Origin: China

Construction Features:

• Housing: Zinc-plated carbon steel (C45) body with integrated male thread, designed for limited fitting dimensions.
• Sliding Interface: Maintenance-free steel on PTFE friction pair, optimized for high unidirectional loads.
• Internal Configuration: Features a spherical plain bearing with integrated 2RS rubber seals to protect against contaminant ingress.
• Dimensional Format: 17 × 46 × 69 mm configuration aligned with dimensional series E.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
