UCF 213 T20 RICH

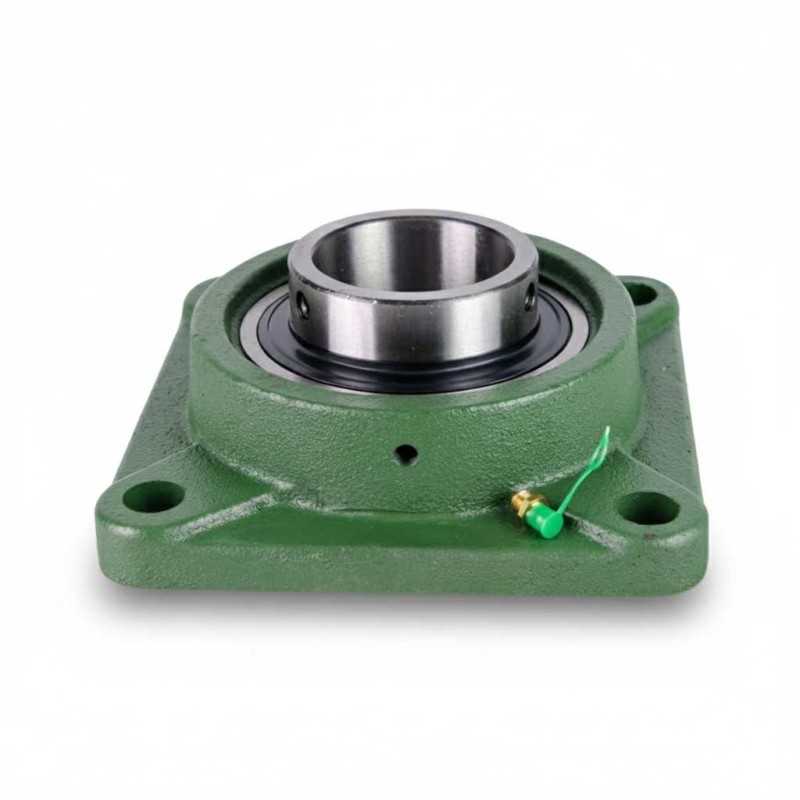

UCF 213 T20 RICH – Cast Iron Flange Bearing Unit – 65 mm Bore

Technical Specifications:

• Type: Cast iron flange bearing unit
• Brand: RICH
• Model Designation: UCF 213 T20
• Shaft Diameter (d): 65 mm
• Housing Length (L): 187 mm
• Mounting Hole Distance (J): 149 mm
• Housing Width (A): 50 mm
• Flange Thickness (A1): 22 mm
• Mounting Hole Diameter (N): 19 mm
• Operating Temperature: -20 ÷ 200°C
• Housing Material: High-strength cast iron
• Weight: 4.91 kg
• Country of Origin: China

Construction Features:

• High-Temperature Capacity: Specialized T20 execution allows this unit to operate reliably in extreme environments, maintaining performance up to 200°C.
• Square Flange Geometry: The robust cast iron housing features four precision-engineered mounting holes for secure attachment to surfaces perpendicular to the shaft.
• Self-Aligning Capability: Equipped with a spherical-seated bearing insert that automatically compensates for static shaft misalignment during installation.
• Industrial Sealing: Designed with advanced heat-resistant seals that prevent the ingress of contaminants while retaining lubricant in high-thermal conditions.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
