2307 K RICH 35x80x31

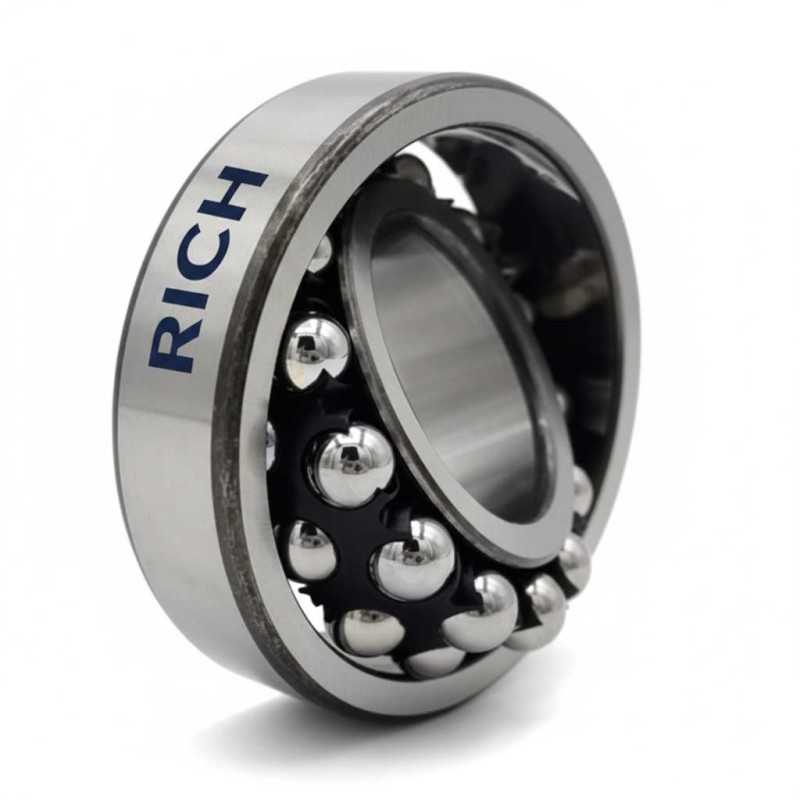

2307K RICH – Self-Aligning Ball Bearing – 35 x 80 x 31 mm

Technical Specifications:

• Type: Self-aligning ball bearing
• Brand: RICH
• Model Designation: 2307K
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 80 mm
• Width (B): 31 mm
• Bore Configuration: Tapered bore (Taper 1:12)
• Cage Material: Steel
• Radial Internal Clearance: CN (Normal clearance)
• Sealing: None (Open configuration)
• Weight: 0.669 kg
• Country of Origin: China

Construction Features:

• Component Design: The assembly is engineered with an open architecture, without integrated protective seals or side shields.
• Internal Configuration: The layout utilizes a double row arrangement of rolling balls guided by a robust steel cage, running inside a continuous spherical outer ring raceway to allow self-alignment.
• Dimensional Profile: The physical structure is defined by a 35 mm internal bore diameter, an 80 mm outside diameter, a wide series profile width of 31 mm, and includes a standard 1:12 taper bore.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
