23220 EM W33 RICH 100x180x60,3

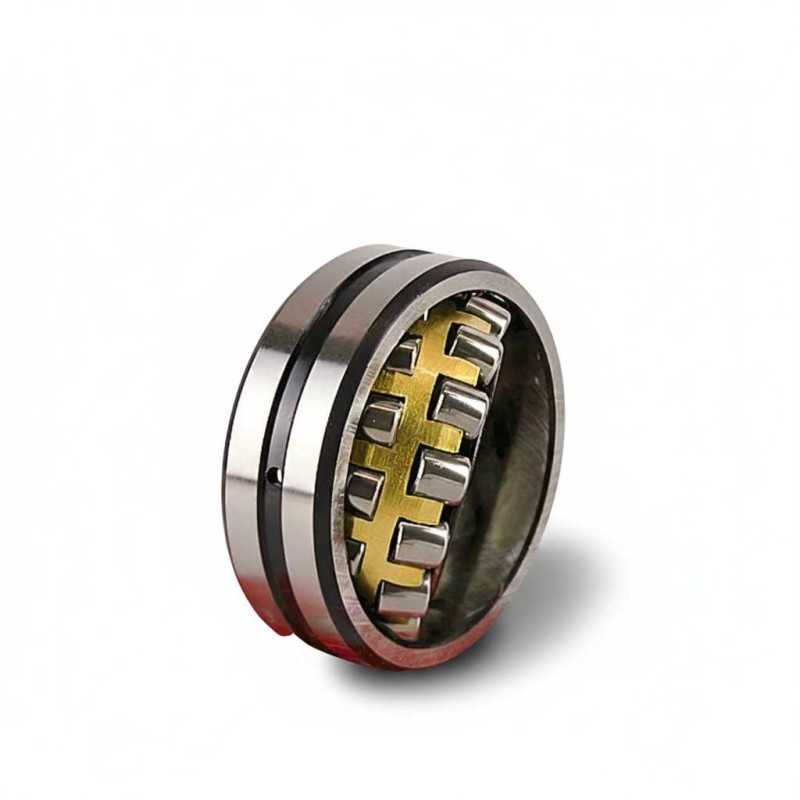

23220 EM W33 RICH – Spherical Roller Bearing – 100 x 180 x 60.3 mm

Technical Specifications:

• Type: Spherical roller bearing
• Brand: RICH
• Model Designation: 23220 EM W33
• Inner Diameter (d): 100 mm
• Outer Diameter (D): 180 mm
• Width (B): 60.3 mm
• Bore Configuration: Cylindrical bore
• Cage Material: Brass (rolling element guided)
• Execution: EM (Reinforced execution with machined brass cage)
• Lubrication Feature: W33 (Annular groove and lubrication holes in outer ring)
• Weight: 6.619 kg
• Country of Origin: China

Construction Features:

• Component Design: The unit features an enhanced-load reinforced design complemented by an integrated outer ring lubrication groove and delivery holes.
• Internal Configuration: The layout utilizes a double row arrangement of barrel rollers retained by a rugged, rolling element guided machined brass cage.
• Dimensional Profile: The heavy-duty structural layout is defined by a 100 mm cylindrical inner bore, a 180 mm outside diameter, and an axial width of 60.3 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
