K75x83x30 RICH K75x83x30 RICH
search
  • K75x83x30 RICH K75x83x30 RICH

K75x83x30 RICH

RICH
K75x83x30
€14.39
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

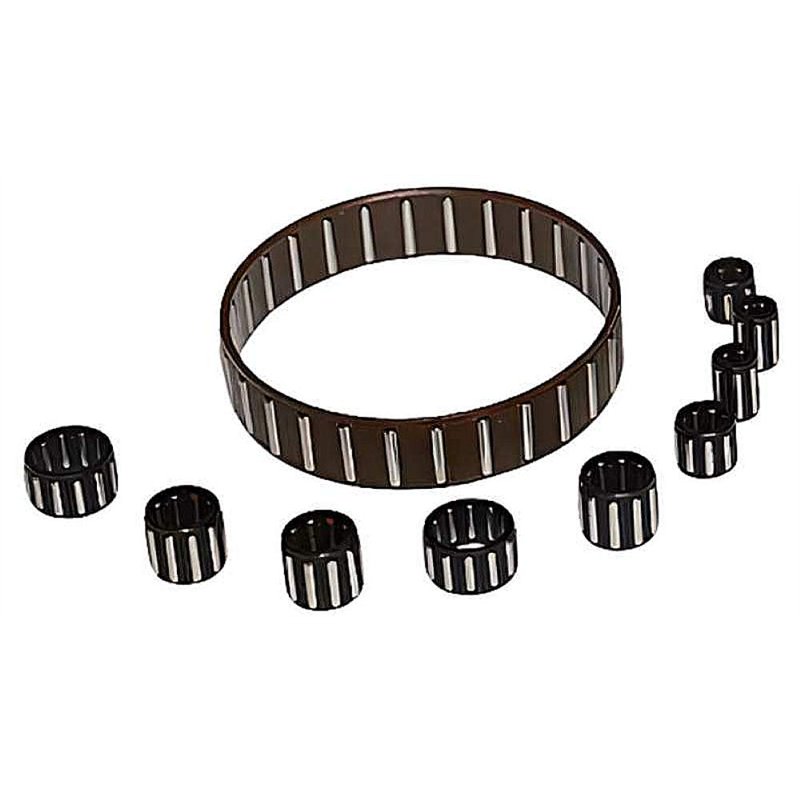

Needle Roller and Cage Assembly K 75x83x30 RICH - 75 x 83 x 30 mm with Steel Cage

The K 75x83x30 RICH is a needle roller and cage assembly engineered for applications demanding high radial load capacity within a confined space. This assembly does not include inner or outer rings, relying on the precision and hardness of the shaft and housing bore to serve as the bearing raceways. It comprises a carefully selected set of needle rollers retained and guided by a steel cage, which ensures optimal roller spacing and movement, contributing to smooth and efficient operation. The dimensions indicate a nominal bore diameter (for the shaft raceway) of 75 mm, an outer diameter (intended to fit into an 83 mm housing bore), and a width of 30 mm, with an approximate weight of 0.144 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller and Cage Assembly
  • Dimensions: 75 mm bore diameter (shaft as raceway) x 83 mm outer diameter (housing as raceway) x 30 mm width
  • Weight: 0.144 kg
  • Cage Material: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • High Radial Load Capacity
  • Compact and Lightweight Design
  • Efficient Use of Available Space (without inner or outer rings)
  • Smooth and Reliable Operation due to precise roller guidance
  • Economical for applications with pre-machined and hardened raceways

Data sheet

Inner Diameter
75
Outer Diameter
83
Width
30
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
