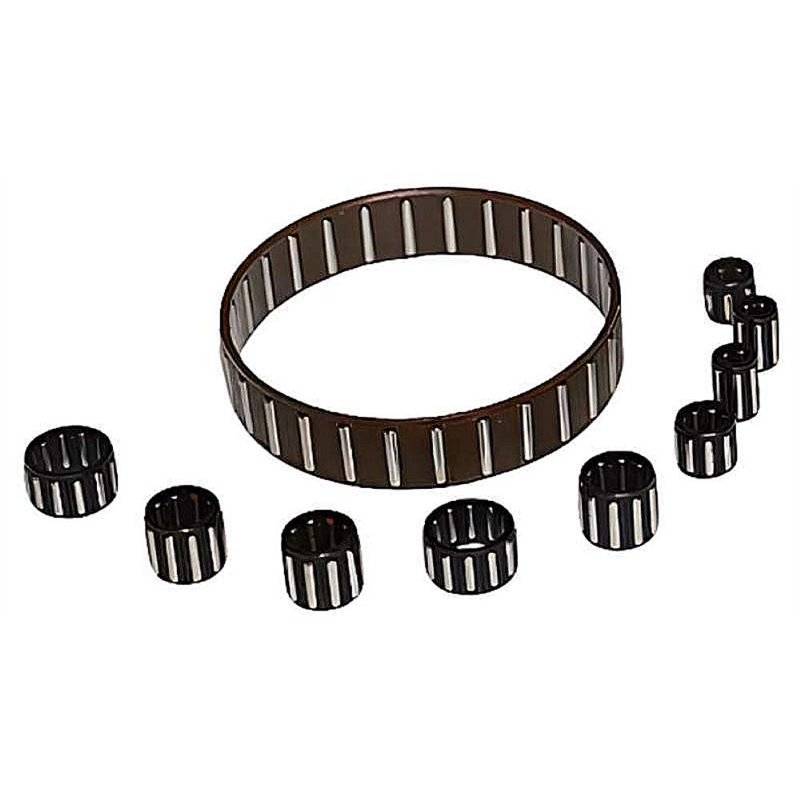

Needle Roller and Cage Assembly K 35x40x17 RICH - 35 x 40 x 17 mm with Steel Cage

The K 35x40x17 RICH is a needle roller and cage assembly designed to offer a high radial load capacity in a compact envelope. This assembly does not include inner or outer rings, and its performance relies on the hardened and precisely finished surfaces of the shaft and housing bore serving as the raceways. It consists of a set of needle rollers accurately held and guided by a steel cage, ensuring smooth and efficient rolling motion. The dimensions indicate a nominal bore diameter (for the shaft raceway) of 35 mm, an outer diameter (intended for a 40 mm housing bore), and a width of 17 mm, with an approximate weight of 0.022 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller and Cage Assembly
  • Dimensions: 35 mm bore diameter (shaft as raceway) x 40 mm outer diameter (housing as raceway) x 17 mm width
  • Weight: 0.022 kg
  • Cage Material: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • High Radial Load Capacity
  • Compact and Lightweight Design
  • Space-Efficient (eliminates the need for separate inner or outer rings)
  • Smooth and Reliable Operation due to optimized roller guidance by the steel cage
  • Cost-Effective for applications where raceways are already hardened and ground

Data sheet

Inner Diameter
35
Outer Diameter
40
Width
17
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
