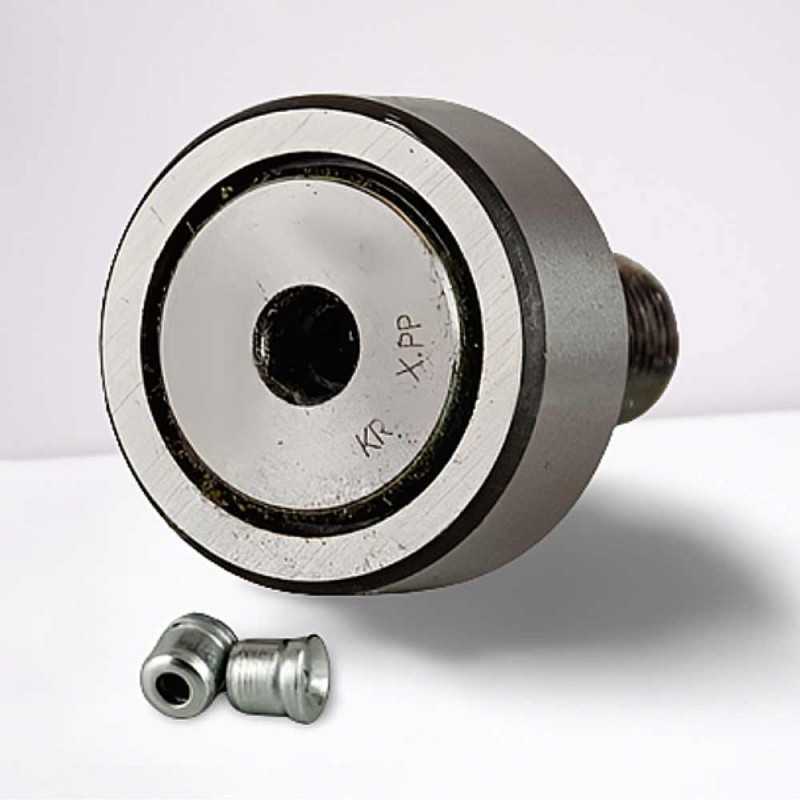

KR22.X.PP RICH Cam Follower, Concentric Stud - 10 x 22 x 12 mm, Sealed
Technical Specifications:
- Bearing Type: Cam Follower, Concentric Stud
- Model Designation: KR22.X.PP
- Brand: RICH
- Dimensions: 10 x 22 x 12 mm
- Inner Diameter (d): 10 mm
- Outer Diameter (D): 22 mm
- Width (B): 12 mm
- Bearing Length (B1): 36 mm
- Rounded Outer Ring: No (Cylindrical)
- Sealing: Double-sided rubber, contact
- Thread: M10x1
- Weight: 0.043 kg
- Country of Manufacture: China
The KR22.X.PP RICH cam follower with a concentric stud, meticulously manufactured by RICH in China, is engineered for precise motion control and reliable performance in various industrial applications. With precise dimensions of 10 mm inner diameter, 22 mm outer diameter, and a width of 12 mm, this cam follower has an overall bearing length of 36 mm and features an M10x1 thread for secure mounting. It is designed with a cylindrical outer ring, making it suitable for direct running on flat raceway surfaces. Enhanced by double-sided rubber contact seals, this cam follower ensures effective contamination protection and lubricant retention, extending its service life. Weighing 0.043 kg, the KR22.X.PP RICH cam follower provides consistent and long-lasting operation in critical machinery.
Key Performance Advantages:
- Concentric Stud Design: Ensures high precision and ease of installation.
- Cylindrical Outer Ring: Optimized for direct running on flat raceway surfaces.
- Effective Sealing: Double-sided rubber contact seals protect against contamination and retain lubricant.
- High Radial Load Capacity: Engineered for demanding cam and linear guide applications.
- Precision Thread (M10x1): Ensures secure and stable mounting.
- RICH Quality: Manufactured in China to high standards, ensuring optimal performance.
Data sheet
Inner Diameter
10
Outer Diameter
22
Width
12
Weight
0,043
Sealing
Lip Seal On Both Sides
