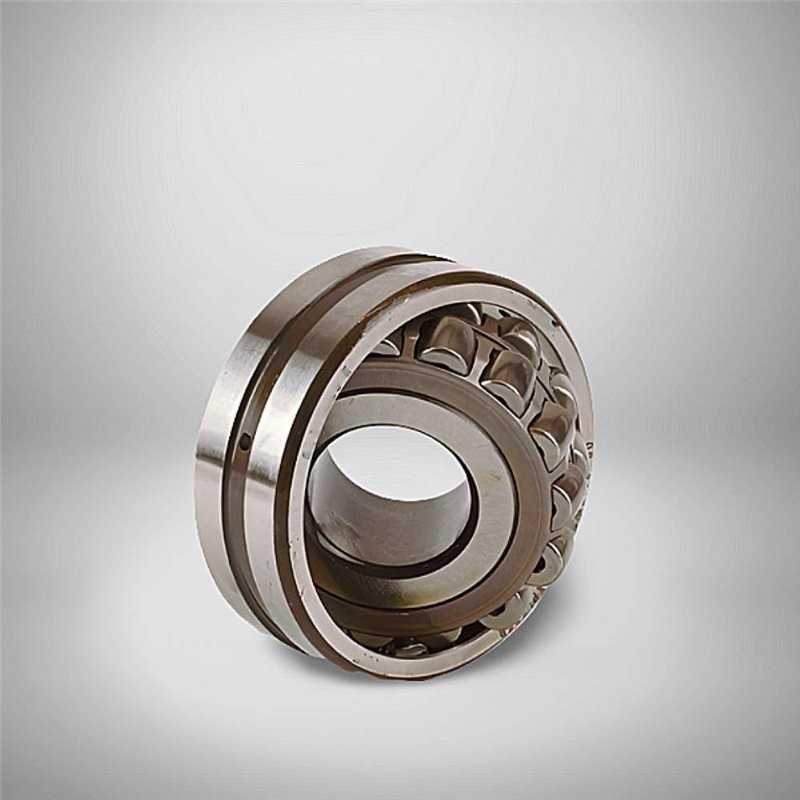

22208EKW33J RICH 40x80x23
The 22208EKW33J RICH is a spherical roller bearing (40 x 80 x 23 mm) with a reinforced, tapered design, perfect for heavy radial and axial loads with misalignment.
22208EKW33J RICH Spherical Roller Bearing - 40 x 80 x 23 mm
Technical Specifications:
- Brand: RICH
- Type: Spherical Roller Bearing
- Dimensions: 40 x 80 x 23 mm
- Taper: Taper 1:12
- Cage: Steel
- Reinforced Execution: Yes
- Weight: 0.526 kg
- Country of Origin: China
The 22208EKW33J RICH is a robust and high-performance spherical roller bearing designed to operate reliably under extremely heavy radial and axial loads. Its unique design features two rows of rollers with a common spherical outer ring raceway, enabling the bearing to accommodate static and dynamic angular misalignment. The reinforced E execution provides a significantly higher load capacity, making it a powerful solution for the most demanding applications. The tapered bore (K suffix) with a 1:12 taper simplifies mounting onto a tapered shaft or with an adapter sleeve. The steel cage ensures durability and stability. The 22208EKW33J RICH is the ideal choice for heavy-duty machinery where high load, shock, and misalignment are common challenges.
Key Performance Advantages:
- Extreme Load Capacity: Engineered to handle very heavy radial and axial loads.
- Self-Aligning: Automatically compensates for shaft or housing misalignment.
- Optimized Mounting: The tapered bore simplifies installation.
- Reinforced Design: Provides enhanced durability and extended service life.
- RICH Quality: Engineered for precision and consistent performance under tough conditions.
Data sheet
Inner Diameter
40
Outer Diameter
80
Width
23
Weight
0,526
Roller Rows
Double Row
Cage
Steel Cage
Clearance
CN (Normal)
