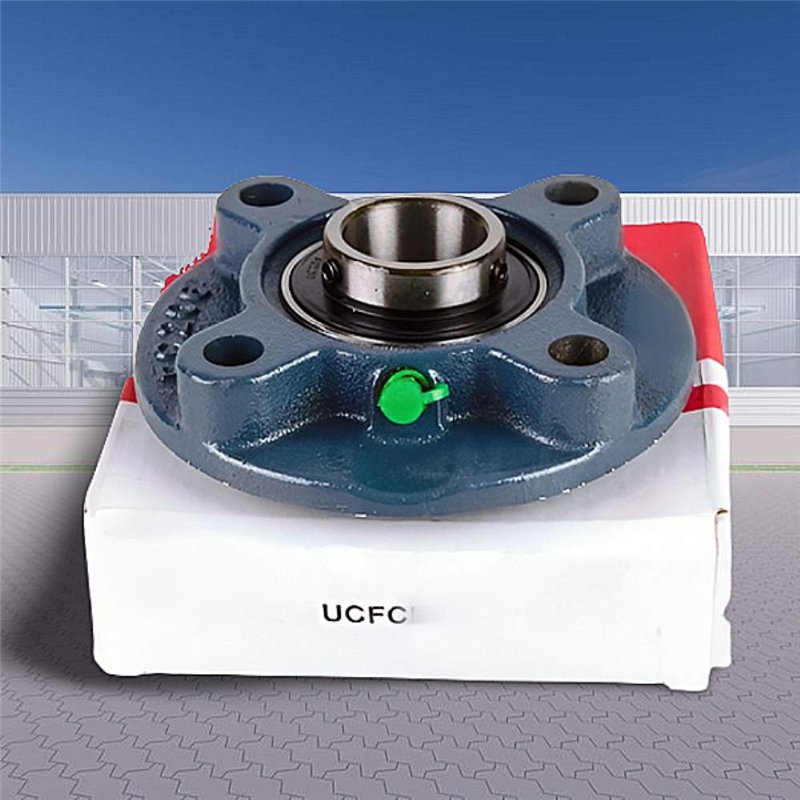

UCFC216 RICH Cast Iron Flanged Cartridge Bearing Unit - 80 mm Bore, C3 Clearance

The UCFC216 RICH is a robust flanged cartridge bearing unit featuring a cast iron housing, designed for reliable performance in demanding applications. This unit has a bore diameter (d) of 80 mm and weighs approximately 9.063 kg. While the provided dimensions show "80 x Additional dimensions include A1 = 18 mm, A2 = 42 mm, A = 58 mm, D2 = 200 mm, and D = 240 mm. It incorporates a durable steel cage and has a C3 internal clearance, which is greater than normal, making it suitable for applications with higher operating temperatures or potential misalignment. The sealing system features a double-sided lip seal covered with steel sheet washers with an outer flinger shield for enhanced corrosion protection. Manufactured in China, this RICH bearing unit offers a dynamic load rating of 72500 N.

Key Specifications:

  • Bearing Type: Cast Iron Flanged Cartridge Bearing Unit
  • Model: UCFC216 RICH
  • Bore Diameter (d): 80 mm
  • Weight: Approximately 9.063 kg
  • A1: 18 mm
  • A2: 42 mm
  • A: 58 mm
  • Cage Material: Steel
  • Internal Clearance: C3 (Greater than Normal)
  • D2: 200 mm
  • Dynamic Load Rating: 72500 N
  • D: 240 mm
  • Sealing: Double-sided lip seal covered with steel sheet washers with outer flinger shield and corrosion protection.
  • Country of Origin: China

Key Features:

  • Robust Cast Iron Housing: Provides excellent strength and durability.
  • 80 mm Bore Diameter: Suitable for shafts of this size.
  • C3 Clearance: Ideal for applications with higher temperatures or potential misalignment.
  • Enhanced Sealing: Offers excellent protection against contaminants and corrosion.
  • High Load Capacity: Capable of handling significant dynamic loads.
  • Reliable RICH Brand: Ensures consistent quality and performance.
  • Flanged Cartridge Design: Simplifies mounting and installation.

Data sheet

Inner Diameter
80
Outer Diameter
240
Width
82,6
Weight
9,15
Sealing
Lip Seal On Both Sides
