K20x24x17 RICH K20x24x17 RICH
search
  • K20x24x17 RICH K20x24x17 RICH

K20x24x17 RICH

RICH
K20x24x17
€0.96
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

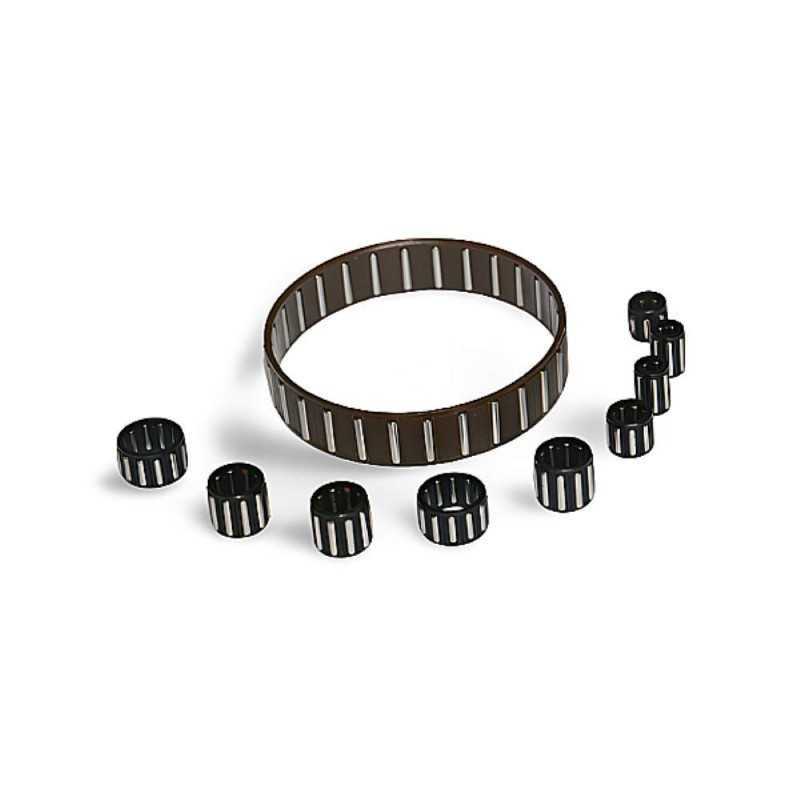

K20X24X17 RICH Needle Roller and Cage Assembly - 20 x 24 x 17 mm

The K20X24X17 RICH is a needle roller and cage assembly designed for applications requiring high load-carrying capacity in a small radial space. This assembly has key dimensions of 20 mm inner diameter, 24 mm outer diameter, and a width of 17 mm. It features a steel cage and weighs approximately 0.017 kg. It is made in China. As with other needle roller and cage assemblies, this component is designed to run directly on hardened and ground shaft and housing bore surfaces, providing a compact and economical bearing solution with a high radial load capacity. The steel cage ensures precise guidance and retention of the needle rollers.

Key Specifications:

  • Assembly Type: Needle Roller and Cage Assembly
  • Model:** K20X24X17 RICH
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 24 mm
  • Width (B): 17 mm
  • Cage Material:** Steel
  • Weight:** 0.017 kg
  • Country of Origin:** China

Key Features:

  • Compact Design:** Offers a very low radial section height.
  • High Load Capacity:** Needle rollers provide a large contact area for high radial loads.
  • Steel Cage:** Ensures precise roller guidance and retention.
  • Economical Solution:** Utilizes hardened and ground shaft and housing bore as raceways.
  • Versatile Application:** Suitable for various applications where space is limited and high radial loads are present.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
20
Outer Diameter
24
Width
17
Weight
0,017
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
